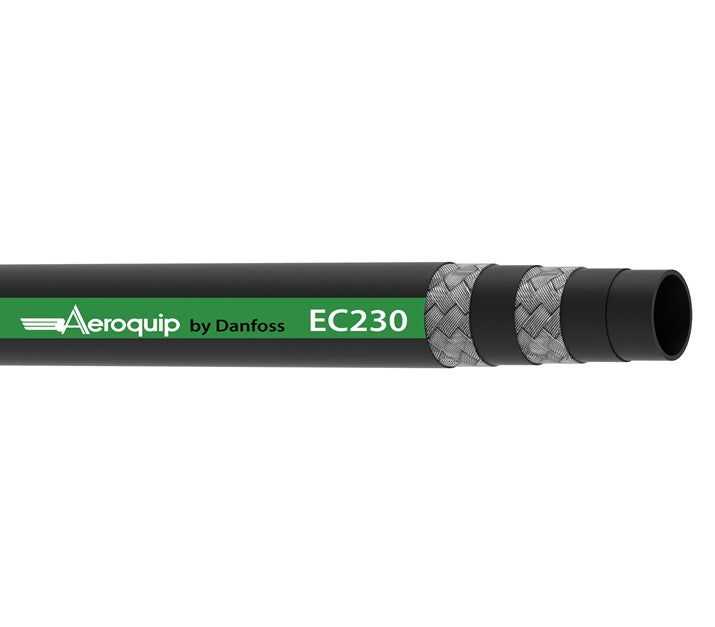

EC230-40 Aeroquip by Danfoss | Large Bore Double Wire Braid Hydraulic Hose | SAE 100R2 | 2.50" ID

EC230-40 Aeroquip by Danfoss | Large Bore Double Wire Braid Hydraulic Hose | SAE 100R2 | 2.50" ID

$79.19 - $79.19
$79.19
$79.19 - $79.19
$79.19

Aeroquip® by Danfoss
EC230 Series | Large Bore Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: EC230-40 Danfoss
Brand: Aeroquip
Series: EC230 Series
Hose Color(s): Black
Dash Size: -40
Internal Diameter: 2.50in
Outer Diameter: 3.16in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R2AT Type S
Hose Properties:
Application: Hydraulic system service with petroleum and waterbased fluids, for general industrial service. SAE Rating: Meets: SAE 100R2 Type S
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Double Wire Braid Cover: DURA-TUFF Synthetic Rubber
Temperature Range: -40°F to +212°F
(-40°C to +100°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
EC230-40 63 63,5mm 2.50" 80,2mm 3.16" 79,0 bar 1150 psi 316,0 bar 4600 psi 660,0mm 26.00" 3,88 kg/m 2.61 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
