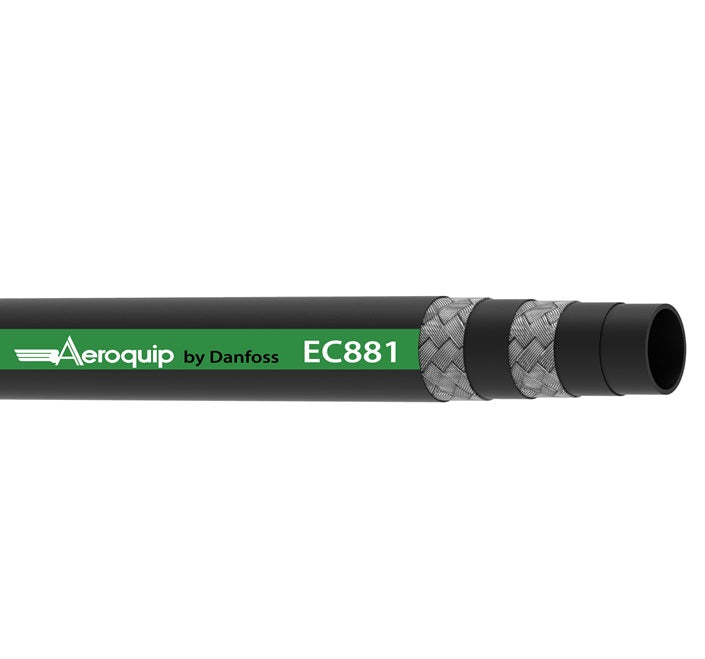

EC881-16 Aeroquip by Danfoss | Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose | SAE 100R16 | SAE 100R19 | 1.00" Hose ID

EC881-16 Aeroquip by Danfoss | Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose | SAE 100R16 | SAE 100R19 | 1.00" Hose ID

Minimum Order Quantity: 150 Feet

$20.71 - $20.71
$20.71
$20.71 - $20.71
$20.71

Aeroquip® by Danfoss
EC881 Series | Premium Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose

This Dynamax ultra-performance hose with the Danfoss Dura-Pulse inner tube combines the lightweight flexibility of a two-wire braided hose with the pressure and performance of spiral 100R12 hoses (-16 and smaller).

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: EC881-16R150 Danfoss
Brand: Aeroquip
Series: EC881 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1.00in
Outer Diameter: 1.36in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R16, SAE 100R19
Hose Properties:
Application: Hydraulic systems with petroleum and water-based fluids, for general industrial service SAE Rating: Exceeds: SAE 100R16 | SAE 100R19 | EN 857 2SC | ISO 18752
Other Ratings: ABS | DNV | MSHA Tube: Dura-Pulse Patented Tube
Reinforcement: Two Wire braid Cover: DURA-TUFF™ Premium Abrasion
Operating Temperature Range: -50°F to +260°F (-46°C to +126°C)
-50ºF to +158ºF (-46ºC to +70ºC) for water based hyd. fluids
+32ºF to 158ºF (0ºC to +70ºC) for water
Part Number Hose ID Nominal Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius Weight
mm in mm in bar psi bar psi mm in kg/m lbs/ft
EC881-4 6.4mm 0.25" 13.6mm 0.54" 450 bar 6,525 psi 1,800 bar 26,100 psi 33,0mm 1.30" 0.32 kg/m 0.22 lbs/ft
EC881-5 8.0mm 0.31" 15.50mm 0.61" 400 bar 5,800 psi 1,600 bar 23,200 psi 38,10mm 1.50" - -
EC881-6 9.5mm 0.38" 17.3mm 0.68" 400 bar 5,800 psi 1,600 bar 23,200 psi 42,0mm 1.65" 0.42 kg/m 0.28 lbs/ft
EC881-8 12.7mm 0.50" 20.9mm 0.82" 360 bar 5,220 psi 1,440 bar 20,880 psi 60,0mm 2.36" 0.58 kg/m 0.39 lbs/ft
EC881-10 15.9mm 0.62" 24.0mm 0.94" 350 bar 5,075 psi 1,400 bar 20,300 psi 68,0mm 2.68" 0.75 kg/m 0.50 lbs/ft
EC881-12 19.0mm 0.75" 27.9mm 1.10" 330 bar 4,785 psi 1,320 bar 19,140 psi 80,0mm 3.15" 1.03 kg/m 0.69 lbs/ft
EC881-16 25.4mm 1.00" 34.6mm 1.36" 280 bar 4,060 psi 1,120 bar 16,240 psi 150,0mm 5.91" 1.47 kg/m 0.99 lbs/ft
EC881-20 31.8mm 1.25" 43.4mm 1.71" 172 bar 2,500 psi 688 bar 9,980 psi 210,0mm 8.27" 1.75 kg/m 1.18 lbs/ft
EC881-24 38.1mm 1.50" 51.8mm 2.04" 138 bar 2,000 psi 552 bar 8,000 psi 250,0mm 9.84" 1.91 kg/m 1.28 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
