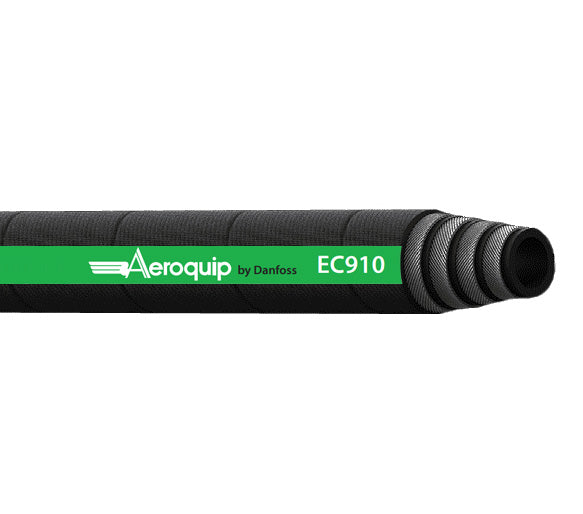

EC910-16C50 Aeroquip by Danfoss | SafeShield Waterblast 4-Spiral Wire Hydraulic Hose | 1.00" ID | 50ft Length

EC910-16C50 Aeroquip by Danfoss | SafeShield Waterblast 4-Spiral Wire Hydraulic Hose | 1.00" ID | 50ft Length

$1,228.54 - $1,228.54
$1,228.54
$1,228.54 - $1,228.54
$1,228.54

Aeroquip® by Danfoss
EC910 Series | SafeShield Waterblast 4-Spiral Wire Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 50 FT

Specifications for Variant SKU: EC910-16C50 Danfoss | 50 |
Brand: Aeroquip, SAFESHIELD Waterblast
Series: EC910 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1.00in
Outer Diameter: 1.57in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: EN1829-2, ISO 7751
Hose Properties:
Application: Waterblast service with water, water-soap, emulsion. SAE Rating: Meets: ISO 7751, EN1829-2 (impulse)
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Heavy 4-Spiral Wire Cover: DURA-TUFF Synthetic Rubber Cover with color coded lay lines in accordance with WJTA (Water Jetting Technology Association)
Temperature Range: -40°F to +200°F (-40°C to +93°C)
Continuous Service Temperature Range: -14°F to +176°F (-10°C to +80°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
EC910-08C50 12 12,7mm 0.50" 24,6mm 0.97" 1100,0 bar 16000 psi 2750,0 bar 40000 psi 228,6mm 9.00" 1,12 kg/m 0.75 lbs/ft
EC910-12C50 19 19,0mm 0.75" 32,8mm 1.29" 1000,0 bar 14500 psi 2500,0 bar 36250 psi 279,4mm 11.00" 1,74 kg/m 1.17 lbs/ft
EC910-16C50 25 25,4mm 1.00" 39,9mm 1.57" 690,0 bar 10000 psi 1725,0 bar 25000 psi 304,8mm 12.00" 2,23 kg/m 1.50 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
