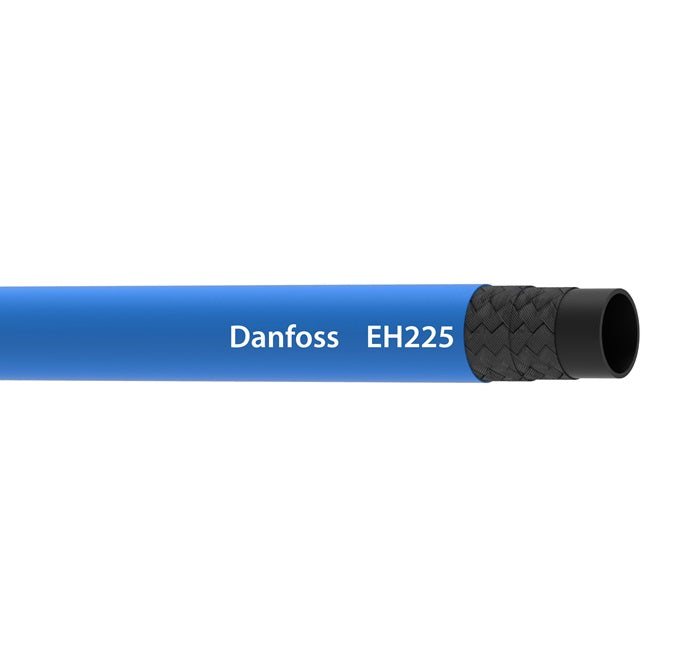

EH22508 Aeroquip by Danfoss | Truck & Engine Heater Hose | SAE J20 R3 Class A | 0.50" ID | Box of 25ft

EH22508 Aeroquip by Danfoss | Truck & Engine Heater Hose | SAE J20 R3 Class A | 0.50" ID | Box of 25ft

$201.97 - $201.97
$201.97
$201.97 - $201.97
$201.97

Aeroquip® by Danfoss
EH225 Series | Truck & Engine Heater Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 25 ft

Specifications for Variant SKU: EH22508 Danfoss | 25 |
Brand: Aeroquip
Series: EH225 Series
Hose Color(s): Blue
Internal Diameter: 0.50in
Outer Diameter: 0.76in
Tubing Construction: Silicone
Applicable Specs & Approvals: SAE J20 R3 Class A
Hose Properties:
Application: Heater Engine. SAE Rating: Meets: SAE J20 R3 Class A
Other Ratings: N/A Tube: Silicone
Reinforcement: Single Ply Polyester Braid Cover: Blue Silicone
Temperature Range: -65°F to +350°F
(-54°C to +177°C)
Part Number Hose ID Hose OD Min. Burst Pressure Length
mm in mm in bar psi ft/box
EH22504 6,40mm 0.25" 11,70mm 0.46" 28,0 bar 400 Psi 25 ft/box
EH22505 7,90mm 0.31" 13,20mm 0.52" 21,0 bar 300 Psi 25 ft/box
EH22506 9,70mm 0.38" 16,30mm 0.64" 17,0 bar 250 Psi 25 ft/box
EH22508 12,70mm 0.50" 19,30mm 0.76" 17,0 bar 250 Psi 25 ft/box
EH22510 16,00mm 0.63" 23,60mm 0.93" 17,0 bar 250 Psi 25 ft/box
EH22512 19,10mm 0.75" 27,20mm 1.07" 14,0 bar 200 Psi 25 ft/box
EH22514 22,40mm 0.88" 31,50mm 1.24" 14,0 bar 200 Psi 25 ft/box
EH22516 25,40mm 1.00" 35,10mm 1.38" 12,0 bar 175 Psi 25 ft/box

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
