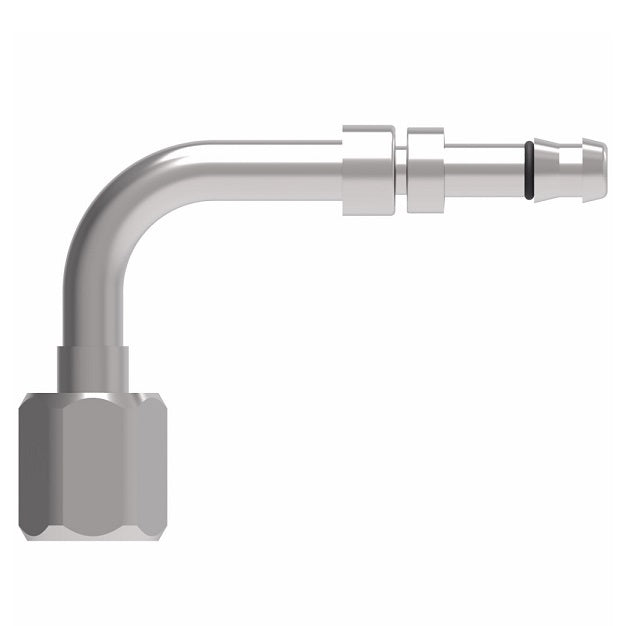

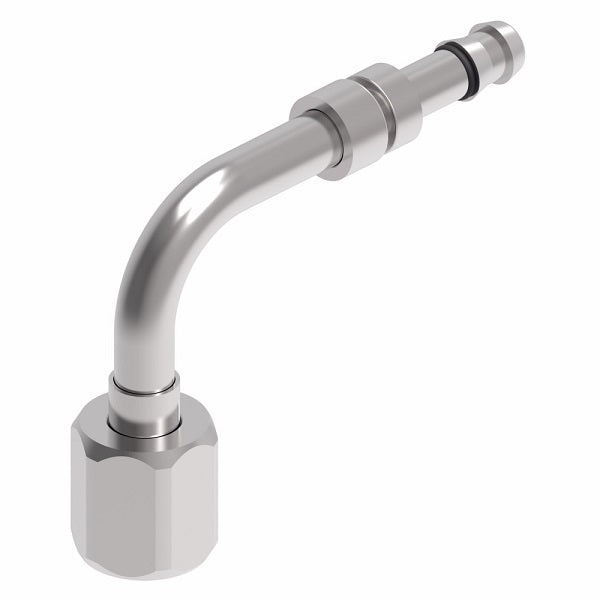

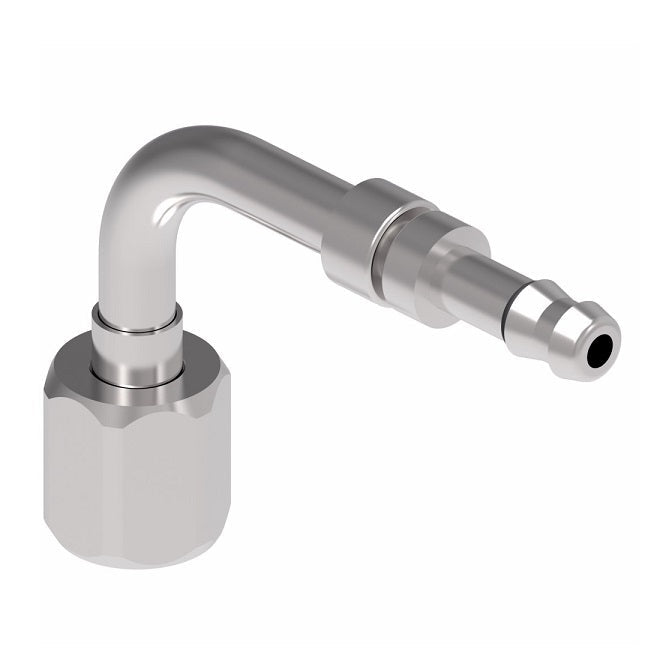

EJ3533-01-0404S E-Z Clip System by Danfoss | Female JIC 37° Flare 90° Elbow | A/C Refrigeration Fitting | -04 Female JIC 37° Flare x -04 Hose Barb | Steel
EJ3533-01-0404S E-Z Clip System by Danfoss | Female JIC 37° Flare 90° Elbow | A/C Refrigeration Fitting | -04 Female JIC 37° Flare x -04 Hose Barb | Steel
EJ3533-01-0404S E-Z Clip System by Danfoss | Female JIC 37° Flare 90° Elbow | A/C Refrigeration Fitting | -04 Female JIC 37° Flare x -04 Hose Barb | Steel
EJ3533-01-0404S E-Z Clip System by Danfoss | Female JIC 37° Flare 90° Elbow | A/C Refrigeration Fitting | -04 Female JIC 37° Flare x -04 Hose Barb | Steel

EJ3533-01-0404S E-Z Clip System by Danfoss | Female JIC 37° Flare 90° Elbow | A/C Refrigeration Fitting | -04 Female JIC 37° Flare x -04 Hose Barb | Steel

$33.76 - $33.76
$33.76
$33.76 - $33.76
$33.76

Danfoss A/C & Refrigeration
E-Z Clip System - Female JIC 37° Flare - 90° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ3533-01-0404S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
EJ3533-01-0404S 7/16-20 -04 2.09" 1.42" 1.21" 0.56" FF14175
EJ3533-02-0606S 9/16-18 -06 3.27" 1.74" 1.69" 0.69" FF14171
EJ3533-03-0608S 9/16-18 -08 3.28" 1.74" 1.69" 0.69" FF14172
EJ3533-04-0808S 3/4-16 -08 3.14" 1.60" 1.77" 0.88" FF14172
EJ3533-05-1010S 7/8-14 -10 3.78" 2.23" 2.59" 1.00" FF14173
EJ3533-06-1212S 1-1/16-12 -12 4.11" 2.53" 3.02" 1.25" FF14174
EJ3533-07-1616S 1-5/16-12 -16 5.16" 3.48" 3.86" 1.50" FF14401
