EJ5306-1212S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
EJ5306-1212S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
EJ5306-1212S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
EJ5306-1212S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

EJ5306-1212S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$62.43 - $62.43
$62.43
$62.43 - $62.43
$62.43

Danfoss A/C & Refrigeration

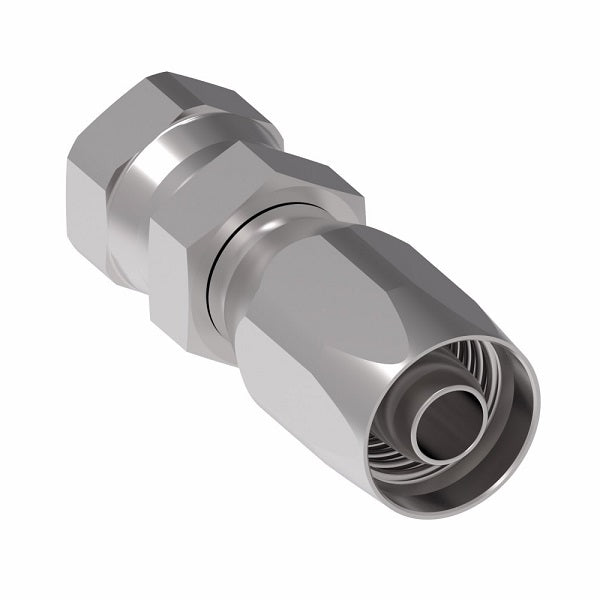

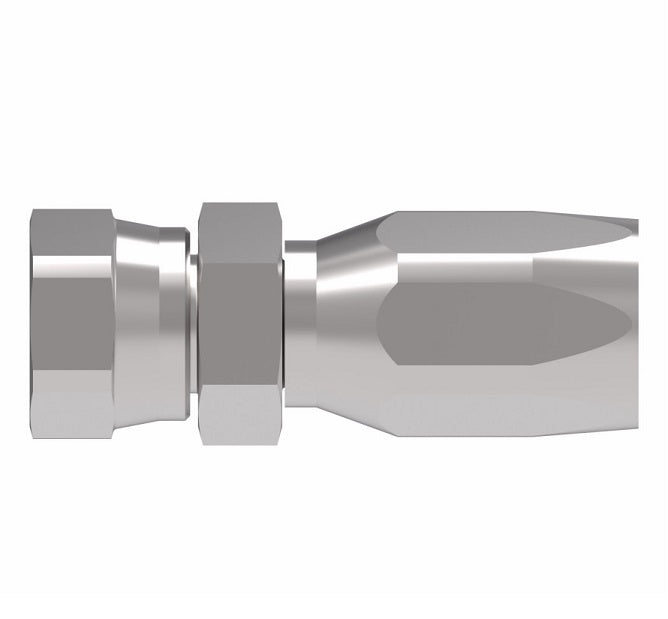

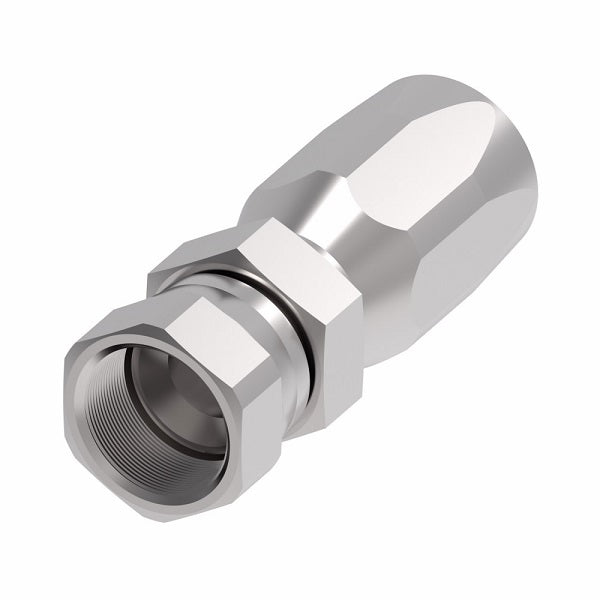

FC800 EverCool Series - Female 37° JIC Swivel Field Attachable Fitting - Straight

For use with FC800 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ5306-1212S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC800 Series
Steel
Part Number 		Hose Size Tube Size Thread Size A Hose cut-off
Factor 		Hole dia. Hex O-Ring ref
EJ5306-1212S 12" 12" 1-1/16x12 3.03" 1.51" 0.47" 1-1/4" FF91026-12
EJ5306-1616S 16" 16" 1-5/16x12 1.78" 1.62" 0.69" 1-1/2" FF91026-16
EJ5306-2020S 20" 20" 1-5/8x12 3.15" 3.15" 0.95" 2" FF91026-20
EJ5306-2424S 24" 24" 1-7/8-12 3.33" 1.95" 1.16" 2-1/4" FF91026-24
