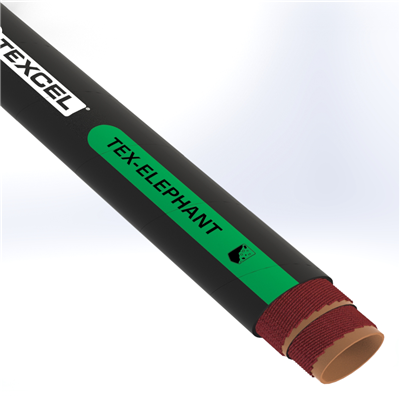

ELEP-10.0 by Texcel | TEX-ELEPHANT Series | Elephant Trunk Hose | 10" Hose ID | 50 PSI | Black

$59.91 - $2,496.00

$59.91

$53.25

$53.25 - $2,218.67

$53.25

Texcel
TEX-COMMODITY Series | Elephant Trunk Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: ELEP-10.0-50N Texcel \| 50 \|
Series:	TEX-ELEPHANT Series
Hose Color(s):	Black
Internal Diameter:	10in
Outer Diameter:	10.52in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR/Nitrile Blend

Technical Data:
Description:	Premium-quality hose made with 1/8" tube gauge for high abrasion and cut resistance. Ideal for cement and abrasives gravity flow, and for use in sleeve applications.	Tube:	Tan, pure gum
Cover:	Black, NR/SBR compound	Reinforcement:	High tensile synthetic plies
Safety Factor:	3:1	Temperature:	-20°F to +180°F
Branding:	TEXCEL™ TEX-ELEPHANT - ELEPHANT TRUNK HOSE 50 PSI W.P.	Features:	Heavy-duty construction with abrasion and cut resistance Designed for cement and abrasive gravity flow Suitable for sleeve applications

Part Number	Hose ID	Hose OD	Tube Gauge	Working Pressure (psi)	Lbs./Ft.
ELEP-8.0	8"	8-33/64"	1/8"	50 psi	3.84 lbs
ELEP-10.0	10"	10-33/64"	1/8"	50 psi	5.50 lbs
ELEP-12.0	12"	12-33/64"	1/8"	50 psi	6.00 lbs
ELEP-14.0	14"	14-33/64"	1/8"	50 psi	7.00 lbs
ELEP-16.0	16"	16-33/64"	1/8"	50 psi	8.15 lbs
