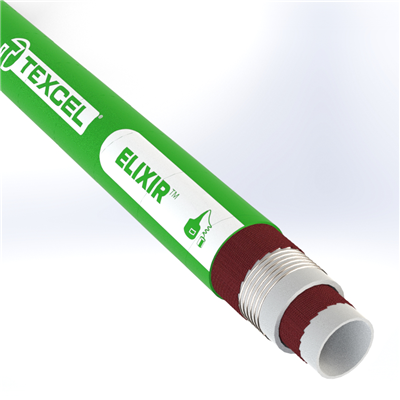

ELIX-2.0 by Texcel | ELIXIR™ Series | Distillery Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Green

$34.23 - $2,853.00

$34.23

$30.43

$30.43 - $2,536.00

$30.43

Texcel
ELIXIR™ Series | Distillery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: ELIX-2.0-100 Texcel \| 100 \|
Series:	ELIXIR™ Series
Hose Color(s):	Green
Internal Diameter:	2in
Outer Diameter:	2.64in
Tubing Construction:	Ultra High Molecular Weight Polyethylene
Cover Construction:	EPDM

Technical Data:
Description:	ELIXIR™ distillery hose is specially formulated for the suction and delivery of alcohols up to 96%, wine, beer, potable water, and other related foodstuffs. The ELIXIR™ hose has a clear, UHMWPE tube to ensure food quality and is both odorless and does not alter taste. Its higher working temperature allows for it to be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(e) for liquid foods, BfR, KTW, EC 1935 / 2004.	Tube:	Clear, UHMWPE
Cover:	Green, EPDM	Reinforcement:	High strength synthetic plies with steel helix
Safety Factor:	3:1	Temperature:	-40°F to +230°F
Branding:	TEXCEL® ELIXIR™ DISTILLERY HOSE 150 PSI (10 BAR) W.P. TEMP. -4F TO 230F (-20C TO 100C) STERILIZATION AT 230F FOR 30 MINS FDA BFR KTW	Safety Note:	It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features:	FDA, USDA compliant

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
ELIX-.75	3/4"	1-14/64"	150 psi	29	2.5"	0.48 lbs
ELIX-.50	1/2"	58/64"	150 psi	29	2"	0.39 lbs
ELIX-1.0	1"	1-29/64"	150 psi	29	3.5"	0.58 lbs
ELIX-1.5	1-1/2"	2"	150 psi	29	5"	0.91 lbs
ELIX-2.0	2"	2-41/64"	150 psi	29	7.5"	1.54 lbs
ELIX-2.5	2-1/2"	3-10/64"	150 psi	29	9"	1.69 lbs
ELIX-3.0	3"	3-40/64"	150 psi	29	11"	2.07 lbs
ELIX-4.0	4"	4-41/64"	150 psi	29	13"	3.03 lbs
