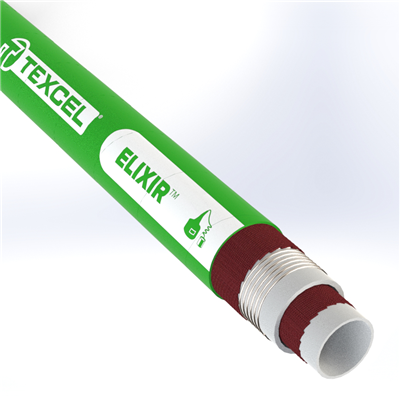

ELIX-3.0 by Texcel | ELIXIR™ Series | Distillery Hose | 3" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Green

ELIX-3.0 by Texcel | ELIXIR™ Series | Distillery Hose | 3" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Green

$52.81 - $4,401.00
$52.81
$46.94
$46.94 - $3,912.00
$46.94

Texcel
ELIXIR™ Series | Distillery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: ELIX-3.0-100 Texcel | 100 |
Series: ELIXIR™ Series
Hose Color(s): Green
Internal Diameter: 3in
Outer Diameter: 3.06in
Tubing Construction: Ultra High Molecular Weight Polyethylene
Cover Construction: EPDM
Technical Data:
Description: ELIXIR™ distillery hose is specially formulated for the suction and delivery of alcohols up to 96%, wine, beer, potable water, and other related foodstuffs. The ELIXIR™ hose has a clear, UHMWPE tube to ensure food quality and is both odorless and does not alter taste. Its higher working temperature allows for it to be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(e) for liquid foods, BfR, KTW, EC 1935 / 2004. Tube: Clear, UHMWPE
Cover: Green, EPDM Reinforcement: High strength synthetic plies with steel helix
Safety Factor: 3:1 Temperature: -40°F to +230°F
Branding: TEXCEL® ELIXIR™ DISTILLERY HOSE 150 PSI (10 BAR) W.P. TEMP. -4F TO 230F (-20C TO 100C) STERILIZATION AT 230F FOR 30 MINS FDA BFR KTW Safety Note: It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features: FDA, USDA compliant
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft.
ELIX-.75 3/4" 1-14/64" 150 psi 29 2.5" 0.48 lbs
ELIX-.50 1/2" 58/64" 150 psi 29 2" 0.39 lbs
ELIX-1.0 1" 1-29/64" 150 psi 29 3.5" 0.58 lbs
ELIX-1.5 1-1/2" 2" 150 psi 29 5" 0.91 lbs
ELIX-2.0 2" 2-41/64" 150 psi 29 7.5" 1.54 lbs
ELIX-2.5 2-1/2" 3-10/64" 150 psi 29 9" 1.69 lbs
ELIX-3.0 3" 3-40/64" 150 psi 29 11" 2.07 lbs
ELIX-4.0 4" 4-41/64" 150 psi 29 13" 3.03 lbs
