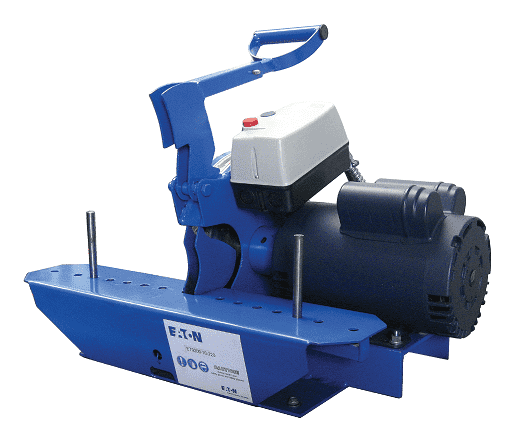

Eaton ET9200-10-440-3 Hydraulic Hose Saw - 3 HP, 440 VAC, 3 Phase

ET9200-10-440-3 by Danfoss | Hydraulic Hose Saw | 3 HP, 440 VAC, 3 Phase

$8,471.04 - $8,471.04
$8,471.04
$8,471.04 - $8,471.04
$8,471.04

Eaton Hydraulic Hose Saw and Blades - ET9200

FREE SHIPPING DOMESTICALLY!
Specifications for Variant SKU: ET9200-10-440-3 Danfoss Tooling
Introduction:
  • Eaton hydraulic hose cutting system is break-through technology using a toothed blade, cutting with the backs of each tooth, so the blade does not take a kerf. The saw bends the hose into the blade spreading the cut edges to avoid burning and smoking.
Benefits:
  • Cleaner Cuts
  • Safer Cuts
  • No Smoke
How It Works:
  • Old Method
    • The normal sawing method of lowering an abrasive saw blade onto the hose causes the hose to compress and deform. As the blade cuts the compressed hosed expands against the blade causing friction, heating and burning and much of the debris from the kerf of the blade is deposited into your hose.
  • New Improved Eaton Method
    • With the Eaton hydraulic hose saws the hose is positioned across two pins (A) and moved into the blade (C) by a feed foot (B) using extendable handle (D) for better leverage on extremely heavy hose. The feed motion causes the hose to stretch at the point of contact with the blade, allowing it to separate as it is cut (see image at below). This separation allows the hose to pass clear of the saw blade with NO friction, NO heating and NO DEBRIS! A vacuum hose (not shown) is attached to a vacuum port to remove any tiny amount of debris or smoke during cutting.
ET9200 Hydraulic Hose Cutting Blades
Part Number Type Blade Size Cutting Capacity
ET9200C-10-AS Advanced Scallop Blade 10" OD x .125 THK X 40 mm arbor 2" ID x 4 Wire Hydraulic Hose
ET9200C-10-MS Micro-Slotted Blade 10" OD x .125 THK X 40 mm arbor 2" ID x 4 Wire Hydraulic Hose
ET9200C-10-D Diamond Blade 10" OD x .125 THK X 40 mm arbor 2" ID x 6 Wire Hydraulic Hose
ET9200C-10-SM Smooth Blade 10" OD x .125 THK X 40 mm arbor 2" ID x 4 Wire Hydraulic Hose
ET9200C-10-SC Scalloped Blade 10" OD x .125 THK X 40 mm arbor 2" ID x 4 Wire Hydraulic Hose
ET9200C-10-SL Slotted Blade 10" OD x .125 THK X 40 mm arbor 2" ID x 4 Wire Hydraulic Hose
ET9200 Hydraulic Hose Saws
Part Number Motor Blade Cutting Capacity
ET9200-10-220 5 HP, 220 VAC, 1 Phase, 60 Cycle, 3,600 RPM One 10" OD x .125 THK X 40 mm arbor 2" ID x 6 Wire Hydraulic Hose
ET9200-10-220-3 3 HP, 220 VAC, 3 Phase, 60 Cycle, 3,600 RPM One 10" OD x .125 THK X 40 mm arbor 2" ID x 6 Wire Hydraulic Hose
ET9200-10-440-3 3 HP, 440 VAC, 3 Phase, 60 Cycle, 3,600 RPM One 10" OD x .125 THK X 40 mm arbor 2" ID x 6 Wire Hydraulic Hose
ET9200-10-12v 4 HP, 12 VDC, 4,000 RPM One 10" OD x .125 THK X 40 mm arbor 2" ID x 4 Wire Hydraulic Hose
ET9200-10-24v 4 HP, 24 VDC, 4,000 RPM One 10" OD x .125 THK X 40 mm arbor 2" ID x 4 Wire Hydraulic Hose
