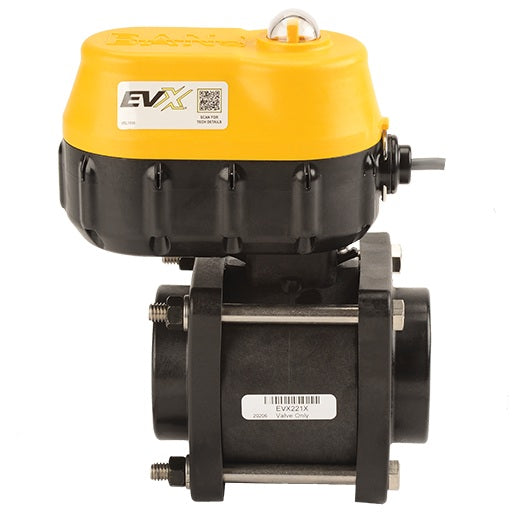

EVX221 by Banjo | EVX On/Off Bolted Electric Valve | Full Port | 2" Pipe Size | 2" Opening Thru Ball | FKM Seals | Polypropylene

Save $64.44

$579.92

$579.92 - $579.92

$579.92

$515.48

$515.48 - $515.48

$515.48

Banjo® Liquid Handling Products
EVX On/Off Bolted Electric Valve | Full Port

Quantity

Specifications for Variant SKU: EVX221 Banjo
Series:	EVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. ON/OFF has 1½ second response. Regulating has 4 second response. Open/Close verification wires available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. On/Off Actuator rated to 500,000 cycles. Regulating Actuator rated to 250,000 cycles. Valve rated to 50,000 cycles leak-free. Bolted valves have the same exact dimensions as our legacy EV valves. Additional protocols available including CAN/ISO BUS
Materials:
316 stainless steel ball & stem Stainless steel hardware Fiberglass reinforced polypropylene PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Handle Kit	Repair Kit
EVX201	2" Standard Port Electric Valve	250 PSI	2"	1-1/2"	VP20153	EVX20200
EVX221	2" Full Port Electric Valve	125 PSI	2"	2"	VP20153	EVX25200
