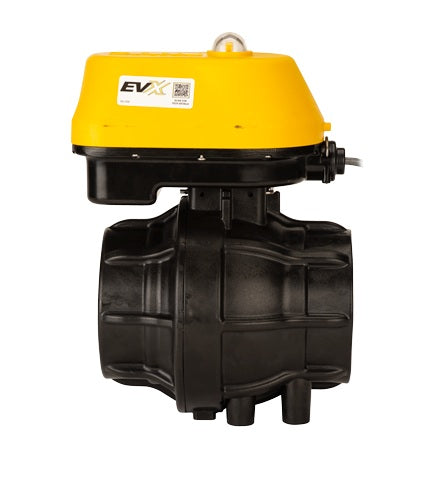

EVX300 by Banjo | EVX On/Off Electric Valve | Full Port | 3" Pipe Size | 3" Opening Thru Ball | FKM Seals | Polypropylene

Save $623.17 Save $623.17
Original price $1,557.93
Original price $1,557.93 - Original price $1,557.93
Original price $1,557.93
Current price $934.76
$934.76 - $934.76
Current price $934.76

Banjo® Liquid Handling Products
EVX On/Off Electric Valve | Full Port


Specifications for Variant SKU: EVX300 Banjo
Series: EVX Series
Shape (Orientation): Straight
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • ON/OFF has 4 second response.
  • Regulating has 4 second response.
  • Open / Close verification available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • Actuator rated to 250,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • Additional protocols available including CAN/ISO BUS.
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • Zinc alloy lower actuator housing
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI
Pipe
Size
Opening
Thru Ball
Optional
Handle
Kit
EVX300 3" Full Port Electric Valve 125 PSI 3" 3" VP30153
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
