F-BSPX-06-08-W by Kurt Hydraulics | Jump Size | Female British Standard Pipe 60 Degree Cone | Swivel | for 3/8" Hose ID

F-BSPX-06-08-W by Kurt Hydraulics | Jump Size | Female British Standard Pipe 60 Degree Cone | Swivel | for 3/8" Hose ID

Save $6.16 Save $6.16
$15.40
$15.40 - $15.40
$15.40
$9.24
$9.24 - $9.24
$9.24
by Kurt Hydraulics
F-BSPX-W - British Standard Pipe 60 Degree Cone Female Swivel (Female British Pipe Straight)
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-BSPX-06-08-W Kurt
Series: W Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/2in Female BSPT
Special Properties: Swivel, Jump Size

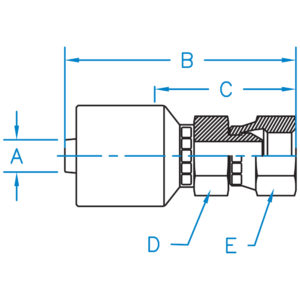

Part Number A B C D E Hose ID
(In)		 Thread
F-BSPX-06-06-W 0.375 2.330 1.100 3/4 7/8 3/8" 3/8-19
F-BSPX-06-08-W 0.375 2.645 1.275 3/4 1.000 3/8" 1/2-14
F-BSPX-08-08-W 0.500 2.660 1.320 7/8 1.000 1/2" 1/2-14
F-BSPX-08-10-W 0.500 2.943 1.603 7/8 1-1/8 1/2" 5/8-14
F-BSPX-10-10-W 0.625 3.66 1.56 1 1-1/8 5/8" 5/8-14
F-BSPX-12-12-W 0.750 3.400 1.610 1-1/8 1-1/4 3/4" 3/4-14
F-BSPX-16-16-W 1.000 3.720 1.610 1-3/8 1-1/2 1.000" 1-11
F-BSPX-20-20-W 1.250 4.393 1.943 1-3/4 2.000 1-1/4" 1-1/4-11
F-BSPX-24-24-W 1.500 4.850 2.250 2-1/4 2-3/8 1-1/2" 1-1/2-11


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
