F-BSPX45-0404-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female BSPP Swivel | 45° Elbow | Carbon Steel

Name: F-BSPX45-0404-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female BSPP Swivel | 45° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: F-BSPX45-0404-K2 Kurt
Price: 38.87 USD
Availability: InStock

Save $25.91

$64.78

$64.78 - $64.78

$64.78

$38.87

$38.87 - $38.87

$38.87

Kurt Hydraulics
Female British Pipe 45° Bent Tube Swivel

Specifications for Variant SKU: F-BSPX45-0404-K2 Kurt
Series:	K2 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Hose Barb, 1/4in Female BSPP
Material(s):	Carbon Steel

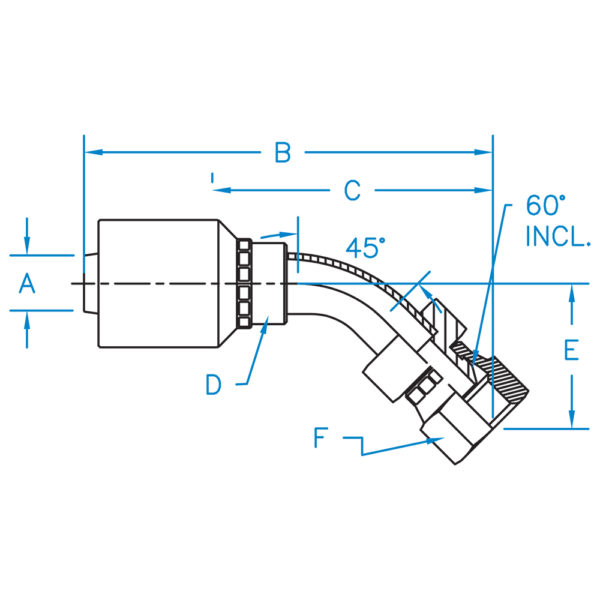

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
F-BSPX45-0404-K2	1/4"	3.17"	2.11"	5/8"	0.75"	3/4"	1/4 – 19
F-BSPX45-0406-K2	1/4"	3.45"	2.39"	5/8"	0.95"	7/8"	3/8 – 19
F-BSPX45-0606-K2	3/8"	3.78"	2.41"	3/4"	0.95"	7/8"	3/8 – 19
F-BSPX45-0608-K2	3/8"	4.10"	2.73"	3/4"	1.00"	1"	1/2 – 14
F-BSPX45-0808-K2	1/2"	3.36"	2.02"	7/8"	0.71"	1"	1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
