F-BSPX45-16-16-W by Kurt Hydraulics | Female British Standard Pipe 60 Degree Cone | 45 Degree Tube | Swivel | for 1" Hose ID

F-BSPX45-16-16-W by Kurt Hydraulics | Female British Standard Pipe 60 Degree Cone | 45 Degree Tube | Swivel | for 1" Hose ID

Save $20.95 Save $20.95
$52.38
$52.38 - $52.38
$52.38
$31.43
$31.43 - $31.43
$31.43
by Kurt Hydraulics
F-BSPX45-W - British Standard Pipe 60 Degree Cone 45 Degree Tube Female Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-BSPX45-16-16-W Kurt
Series: W Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Hose Barb, 1in Female BSPT
Special Properties: Swivel

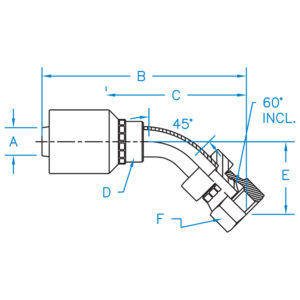

Part Number A B C D E F Hose ID
(In)		 Thread
F-BSPX45-06-06-W 0.375 3.781 2.411 3/4 0.950 7/8 3/8" 3/8-19
F-BSPX45-08-08-W 0.500 3.360 1.410 7/8 1.000 1.000 1/2" 1/2-14
F-BSPX45-10-10-W 0.625 N/A N/A N/A N/A 1-1/8 5/8" 5/8-14
F-BSPX45-12-12-W 0.750 4.940 2.440 1.000 1.170 1-1/4 3/4" 3/4-14
F-BSPX45-16-16-W 1.000 5.340 3.240 1-5/16 1.360 1-1/2 1.000" 1-11


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
