F-BSPX90-0404-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female BSPP Swivel | 90° Elbow | Carbon Steel

F-BSPX90-0404-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female BSPP Swivel | 90° Elbow | Carbon Steel

Save $25.06 Save $25.06
$62.65
$62.65 - $62.65
$62.65
$37.59
$37.59 - $37.59
$37.59

Kurt Hydraulics
Female British Pipe 90° Bent Tube Swivel
Specifications for Variant SKU: F-BSPX90-0404-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 1/4in Female BSPP
Material(s): Carbon Steel

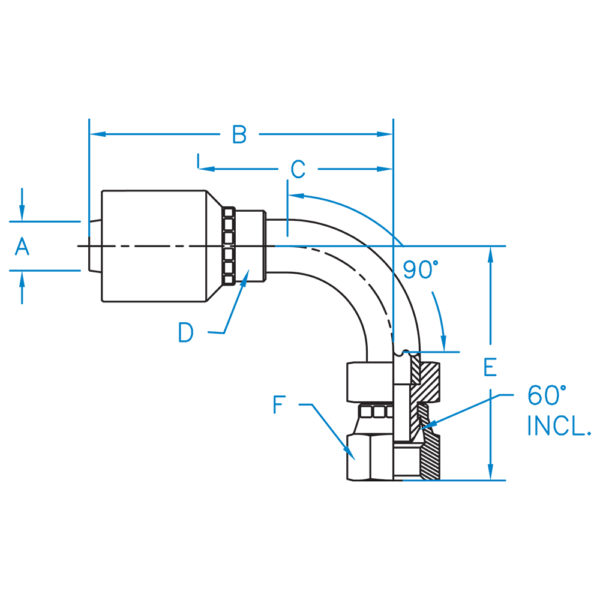

Part Number Hose I.D. (in.) B C D E F Thread
F-BSPX90-0404-K2 1/4" 2.70" 1.64" 5/8" 1.33" 3/4" 1/4 – 19
F-BSPX90-0406-K2 1/4" 2.84" 1.78" 5/8" 1.79" 3/4" 3/8 – 19
F-BSPX90-0606-K2 3/8" 3.17" 1.80" 3/4" 1.79" 7/8" 3/8 – 19
F-BSPX90-0608-K2 3/8" 3.32" 2.09" 3/4" 1.95" 1" 1/2 – 14
F-BSPX90-0808-K2 1/2" 3.49" 2.15" 7/8" 1.95" 1" 1/2 – 14
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
