F-BSPX90-08-08 by Kurt Hydraulics | Female BSPP 60° Cone | 90° Elbow | Swivel | for 1/2" Hose ID

F-BSPX90-08-08 by Kurt Hydraulics | Female BSPP 60° Cone | 90° Elbow | Swivel | for 1/2" Hose ID

Save $11.09 Save $11.09
$27.73
$27.73 - $27.73
$27.73
$16.64
$16.64 - $16.64
$16.64

by Kurt Hydraulics
F-BSPX90 - British Standard Pipe 60 deg. Cone 90 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-BSPX90-08-08 Kurt
Series: Braided Coupling Series
Shape (Orientation): 90 Degree
Special Properties: Swivel

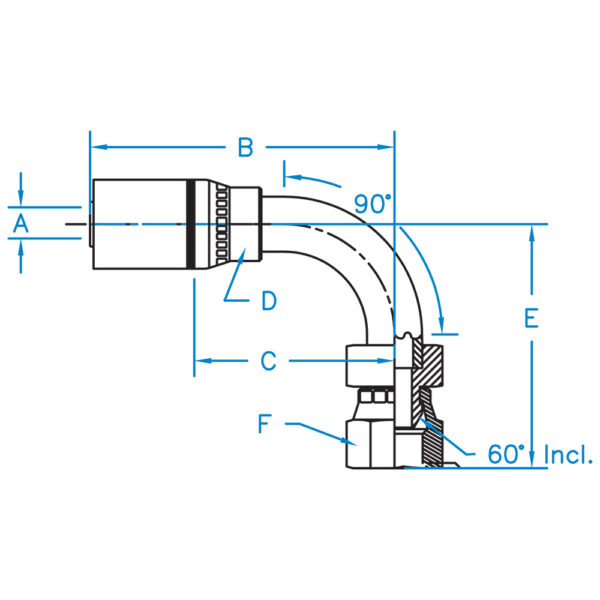

Part Number A B C D E F Hose ID
(In)		 Thread
F-BSPX90-04-04 0.250 2.370 1.720 5/8 1.330 3/4 1/4" 1/4-19
F-BSPX90-04-06 0.250 N/A N/A N/A N/A N/A 1/4" 3/8-19
F-BSPX90-06-06 0.375 3.378 1.876 3/4 1.790 7/8 3/8" 3/8-19
F-BSPX90-06-08 0.250 3.677 2.177 3/4 R 1.950 1.000 1/4" 3/8-19
F-BSPX90-08-08 0.500 2.100 2.250 7/8 1.950 1.000 1/2" 1/2-14
F-BSPX90-10-10 0.625 3.317 1.437 1-1/8 2.343 1-1/8 5/8" 5/8-14
F-BSPX90-10-12 0.625 3.755 2.255 1-1/8 R 2.312 1-1/4 5/8" 3/4-14
F-BSPX90-12-12 0.750 3.965 2.418 1-1/8 1.660 1-1/4 3/4" 3/4-14
F-BSPX90-16-16 1.000 7.59 4.95 1-3/8 2.14 1-1/2 1.000" 1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
