F-BSPX90B-06-08 by Kurt Hydraulics | Jump Size | Female British Standard Pipe 60 Degree Cone | 90 Degree | Block Style | Swivel | for 3/8" Hose ID

Save $23.89

$59.72

$59.72 - $59.72

$59.72

$35.83

$35.83 - $35.83

$35.83

by Kurt Hydraulics
F-BSPX90B - British Std Pipe 60 deg. Cone 90 deg. Block Style Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: F-BSPX90B-06-08 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb, 1/2in Female BSPT
Special Properties:	Swivel, Jump Size

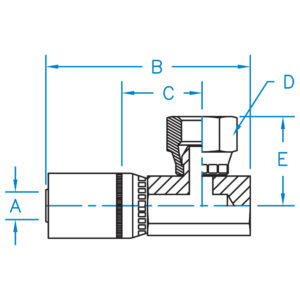

Part Number	A	Hose ID (In)	Thread
F-BSPX90B-04-04	0.250	1/4"	1/4-19
F-BSPX90B-06-06	0.375	3/8"	3/8-19
F-BSPX90B-06-08	0.375	3/8"	1/2-14
F-BSPX90B-08-08	0.500	1/2"	1/2-14
F-BSPX90B-12-12	0.750	3/4"	3/4-14
F-BSPX90B-16-16	1.000	1.000"	1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
