F-DH08-16-24-W by Kurt Hydraulics | Female DIN Heavy 24 Degree Seat | Swivel With O-Ring | for 1/2" Hose ID

Name: F-DH08-16-24-W by Kurt Hydraulics | Female DIN Heavy 24 Degree Seat | Swivel With O-Ring | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: F-DH08-16-24-W Kurt
Price: 17.95 USD
Availability: InStock

Save $2.24

$20.19

$20.19 - $20.19

$20.19

$17.95

$17.95 - $17.95

$17.95

by Kurt Hydraulics
F-DH-W - Din Heavy 24 deg. Seat Female Swivel With O-Ring

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-DH08-16-24-W Kurt
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, S24 Female DIN
Special Properties:	Swivel

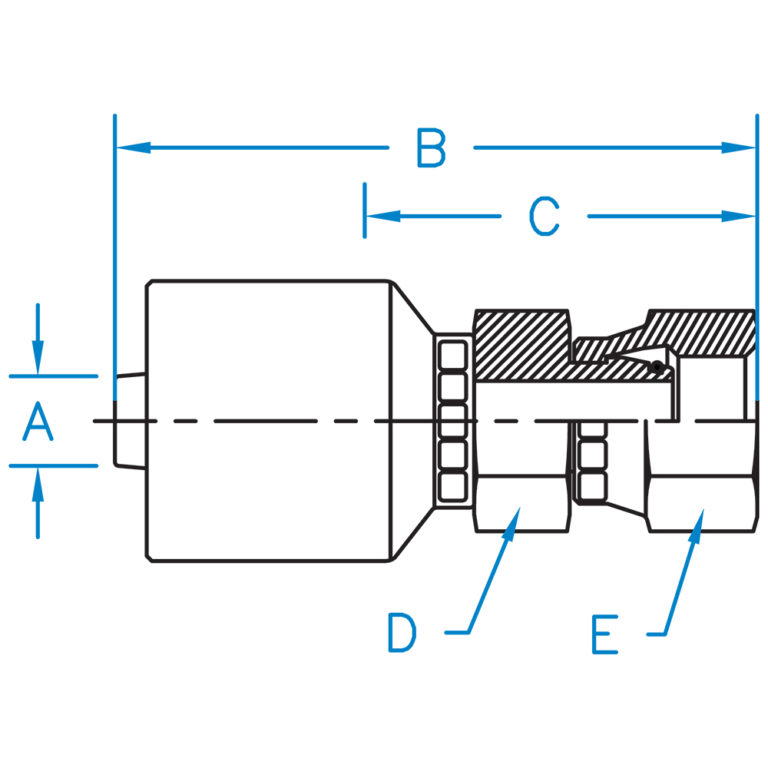

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-DH06-08-16-W	N/A	N/A	N/A	N/A	N/A	N/A	N/A
F-DH06-12-20-W	0.375	2.505	1.142	11/16	15/16	3/8"	M20 X 1.5
F-DH06-14-22-W	0.375	N/A	N/A	N/A	1-1/16	3/8"	M22 X 1.5
F-DH08-16-24-W	0.500	2.627	1.287	7/8	1-3/16	1/2"	M24 X 1.5
F-DH10-20-30-W	0.625	3.383	1.504	1-1/4	1-7/16	5/8"	M30 X 2.0
F-DH12-20-30-W	0.750	3.383	1.504	1-1/4	1-7/16	3/4"	M30 X 2.0
F-DH12-25-36-W	0.750	3.361	1.482	1-1/4	1-3/4	3/4"	M36 X 2.0
F-DH16-30-42-W	1.000	3.701	1.596	1-1/2	2.000	1.000"	M42 X 2.0
F-DH20-30-42-W	1.250	N/A	N/A	N/A	2.000	1-1/4"	M42 X 2.0
F-DH20-38-52-W	1.250	4.136	1.596	2	2-3/8	1-1/4"	M52 X 2.0
F-DH24-38-52-W	1.500	N/A	N/A	N/A	2-3/8	1-1/2"	M52 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
