F-DH16-30-42-W by Kurt Hydraulics | Female DIN Heavy 24 Degree Seat | Swivel With O-Ring | for 1" Hose ID

F-DH16-30-42-W by Kurt Hydraulics | Female DIN Heavy 24 Degree Seat | Swivel With O-Ring | for 1" Hose ID

Save $5.29 Save $5.29
$47.57
$47.57 - $47.57
$47.57
$42.28
$42.28 - $42.28
$42.28
by Kurt Hydraulics
F-DH-W - Din Heavy 24 deg. Seat Female Swivel With O-Ring
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DH16-30-42-W Kurt
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, S42 Female DIN
Special Properties: Swivel

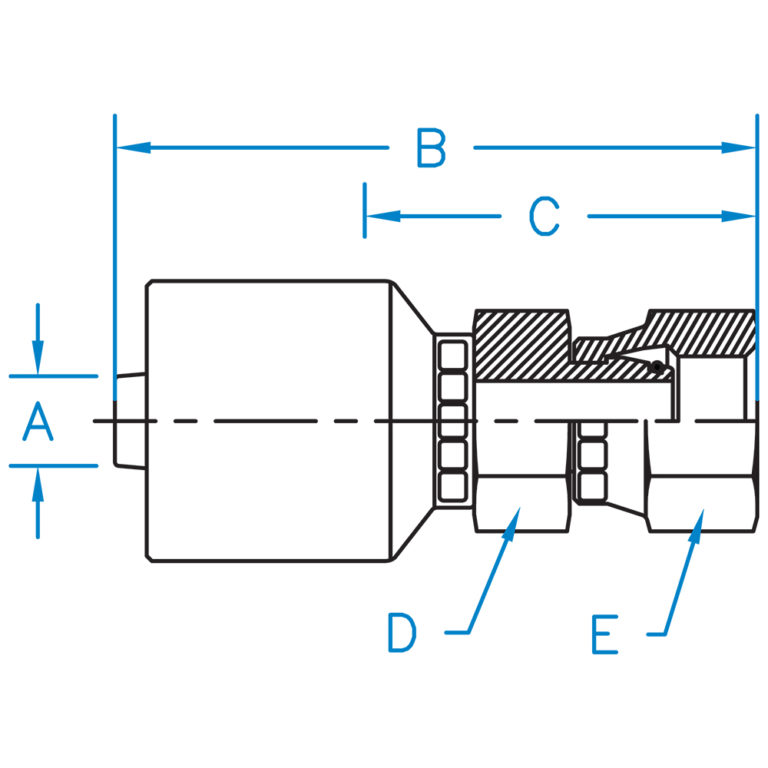

Part Number A B C D E Hose ID
(In)		 Thread
F-DH06-08-16-W N/A N/A N/A N/A N/A N/A N/A
F-DH06-12-20-W 0.375 2.505 1.142 11/16 15/16 3/8" M20 X 1.5
F-DH06-14-22-W 0.375 N/A N/A N/A 1-1/16 3/8" M22 X 1.5
F-DH08-16-24-W 0.500 2.627 1.287 7/8 1-3/16 1/2" M24 X 1.5
F-DH10-20-30-W 0.625 3.383 1.504 1-1/4 1-7/16 5/8" M30 X 2.0
F-DH12-20-30-W 0.750 3.383 1.504 1-1/4 1-7/16 3/4" M30 X 2.0
F-DH12-25-36-W 0.750 3.361 1.482 1-1/4 1-3/4 3/4" M36 X 2.0
F-DH16-30-42-W 1.000 3.701 1.596 1-1/2 2.000 1.000" M42 X 2.0
F-DH20-30-42-W 1.250 N/A N/A N/A 2.000 1-1/4" M42 X 2.0
F-DH20-38-52-W 1.250 4.136 1.596 2 2-3/8 1-1/4" M52 X 2.0
F-DH24-38-52-W 1.500 N/A N/A N/A 2-3/8 1-1/2" M52 X 2.0


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
