F-DH4512-25-36-W by Kurt Hydraulics | Female DIN Heavy Universal Seat | 45 Degree Bent Tube | Swivel With O-Ring | for 3/4" Hose ID

F-DH4512-25-36-W by Kurt Hydraulics | Female DIN Heavy Universal Seat | 45 Degree Bent Tube | Swivel With O-Ring | for 3/4" Hose ID

Save $28.69 Save $28.69
$71.72
$71.72 - $71.72
$71.72
$43.03
$43.03 - $43.03
$43.03
by Kurt Hydraulics
F-DH45-W - Din Heavy Universal Seat 45 deg. Tube Female Swivel With O-Ring
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DH4512-25-36-W Kurt
Series: W Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Hose Barb, S36 Female DIN
Special Properties: Swivel

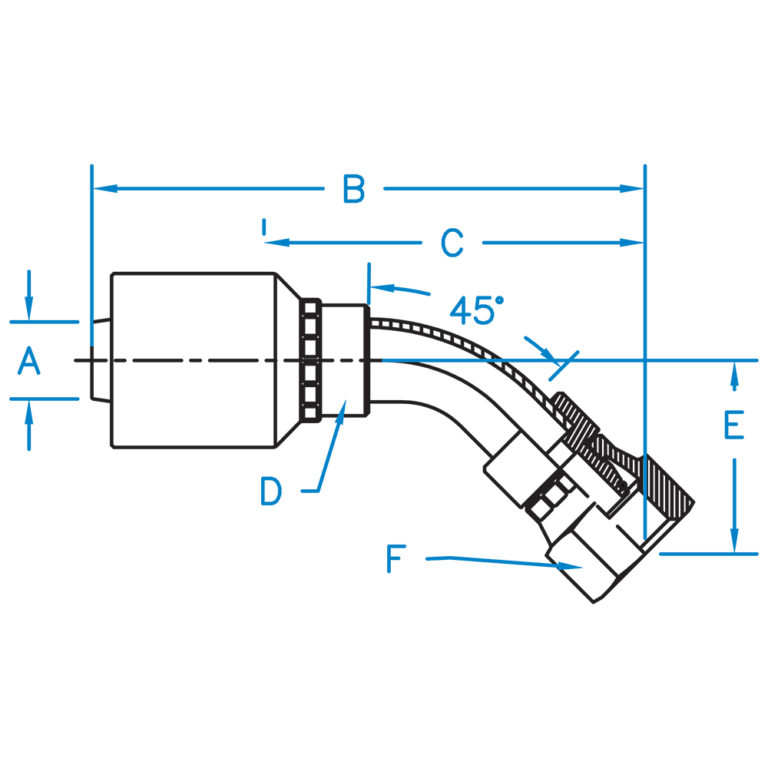

Part Number A B C D E F Hose ID
(In)		 Thread
F-DH4506-08-16-W 0.375 3.721 2.351 11/16 .89 7/8 3/8" M16 X 1.5
F-DH4506-12-20-W 0.375 4.195 2.825 3/4 1.160 15/16 3/8" M20 X 1.5
F-DH4506-14-22-W 0.375 3.851 2.481 11/16 1.019 1-1/16 3/8" M22 X 1.5
F-DH4508-12-20-W 0.500 3.85 2.51 7/8 1.204 15/16 1/2" M20 X 1.5
F-DH4508-16-24-W 0.500 4.315 2.975 7/8 1.260 1-3/16 1/2" M24 X 1.5
F-DH4510-20-30-W 0.625 5.315 3.215 1 1.310 1-7/16 5/8" M30 X 2.0
F-DH4512-20-30-W 0.750 5.177 3.298 1 1.402 1-7/16 3/4" M30 X 2.0
F-DH4512-25-36-W 0.750 4.932 3.053 1 1.263 1-3/4 3/4" M36 X 2.0
F-DH4520-30-42-W 1.250 6.81 4.27 1-5/8 1.63 2.000 1-1/4" M42 x 2.0
F-DH4520-38-52-W 1.250 7 4.46 1-5/8 1.82 2-3/8 1-1/4" M52 X 2.0


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
