F-DH9020-38-52-W by Kurt Hydraulics | Female DIN Heavy Universal Seat | 90 Degree Tube | Swivel With O-Ring | for 1-1/4" Hose ID

F-DH9020-38-52-W by Kurt Hydraulics | Female DIN Heavy Universal Seat | 90 Degree Tube | Swivel With O-Ring | for 1-1/4" Hose ID

Save $57.87 Save $57.87
$144.68
$144.68 - $144.68
$144.68
$86.81
$86.81 - $86.81
$86.81
by Kurt Hydraulics
F-DH90-W - Din Heavy Universal Seat 90 deg. Tube Female Swivel With O-Ring
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DH9020-38-52-W Kurt
Series: W Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Hose Barb, S52 Female DIN
Special Properties: Swivel

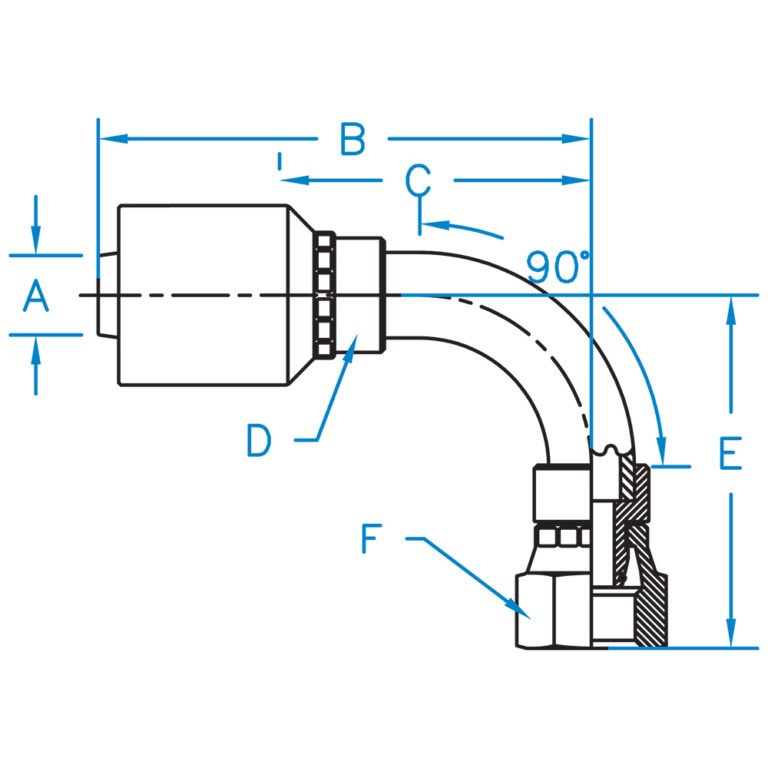

Part Number A B C D E F Hose ID
(In)		 Thread
F-DH9006-08-16-W N/A N/A N/A N/A N/A N/A N/A N/A
F-DH9006-12-20-W 0.375 3.175 1.804 N/A 2.010 15/16 3/8" M20 X 1.5
F-DH9006-14-22-W 0.375 3.174 1.804 N/A 1.751 1-1/16 3/8" M22 X 1.5
F-DH9008-12-20-W 0.500 3.486 2.146 N/A 1.991 15/16 1/2" M20 X 1.5
F-DH9008-16-24-W 0.500 3.486 2.146 N/A 2.310 1-3/16 1/2" M24 X 1.5
F-DH9010-20-30-W 0.625 4.689 2.870 N/A 2.694 1-7/16 5/8" M30 X 2.0
F-DH9012-20-30-W 0.750 4.689 2.810 N/A 2.694 1-7/16 3/4" M30 X 2.0
F-DH9012-25-36-W 0.750 4.123 2.244 N/A 2.711 1-3/4 3/4" M36 X 2.0
F-DH9020-30-42-W 1.250 N/A N/A N/A N/A 2.000 1-1/4" M42 X 2.0
F-DH9020-38-52-W 1.250 6.42 3.88 N/A 3.78 2-3/8 1-1/4" M52 X 2.0
F-DH9024-38-52-W 1.500 N/A N/A N/A N/A 2-3/8 1-1/2" M52 X 2.0


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
