F-DL04-08-14-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M14X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | Carbon Steel

F-DL04-08-14-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x M14X1.5 Female Din Light 24° Seat Swivel w/ O-Ring | Carbon Steel

Save $21.20 Save $21.20
$53.00
$53.00 - $53.00
$53.00
$31.80
$31.80 - $31.80
$31.80

Kurt Hydraulics
Din Light 24º Seat Female Swivel With O-Ring
Specifications for Variant SKU: F-DL04-08-14-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, L08 Female DIN
Material(s): Carbon Steel

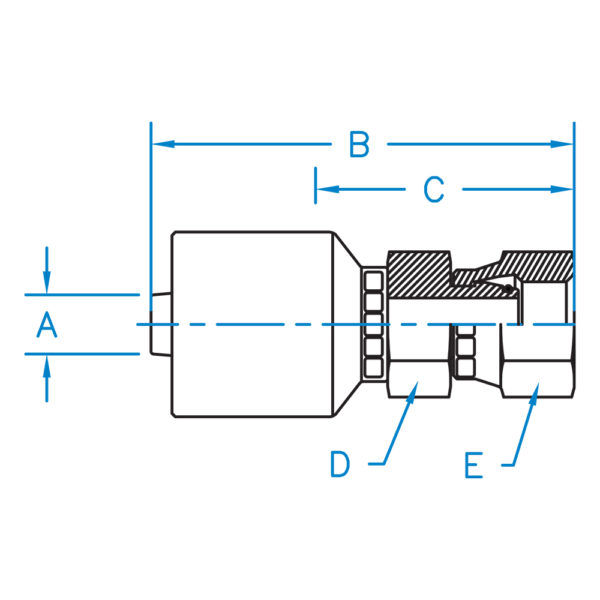

Part Number Hose I.D. (in.) B C D E Thread
F-DL04-06-12-K2 1/4" 2.18" 1.12" 11/16" 9/16" M12 X 1.5
F-DL04-08-14-K2 1/4" 2.30" 1.24" 9/16" 11/16" M14 X 1.5
F-DL04-10-16-K2 1/4" 2.23" 1.17" 11/16" 3/4" M16 X 1.5
F-DL06-10-16-K2 3/8" 2.56" 1.19" 3/4" 3/4" M16 X 1.5
F-DL06-12-18-K2 3/8" 2.60" 1.23" 3/4" 7/8" M18 X 1.5
F-DL06-15-22-K2 3/8" 2.71" 1.34" 3/4" 1-1/16" M22 X 1.5
F-DL08-15-22-K2 1/2" 2.80" 1.46" 7/8" 1-1/16" M22 X 1.5
F-DL08-18-26-K2 1/2" 3.78" 1.68" 1-1/8" 1-1/4" M26 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
