F-DL9012-22-30-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | 90 Degree Bent Tube | Swivel With O-Ring | for 3/4" Hose ID

F-DL9012-22-30-W by Kurt Hydraulics | Female DIN Light 24 Degree Seat | 90 Degree Bent Tube | Swivel With O-Ring | for 3/4" Hose ID

Save $26.21 Save $26.21
$65.53
$65.53 - $65.53
$65.53
$39.32
$39.32 - $39.32
$39.32
by Kurt Hydraulics
F-DL-W - Din Light 24 deg. Seat 90 deg. Bent Tube Female Swivel With O-Ring
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DL9012-22-30-W Kurt
Series: W Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, L30 Female DIN
Special Properties: Swivel

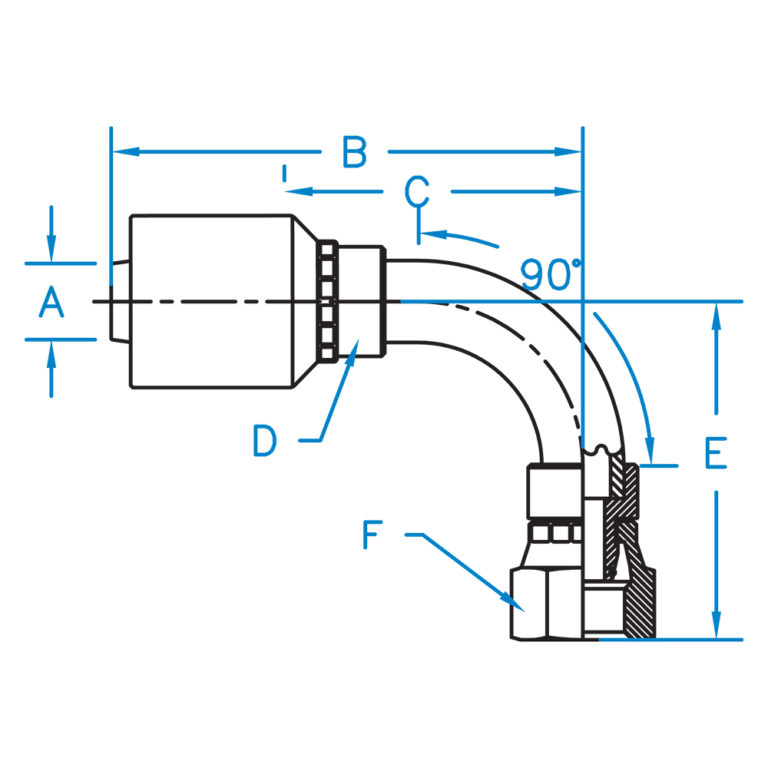

Part Number A B C D E F Hose ID
(In)		 Thread
F-DL9004-08-14-W 0.250 2.695 1.635 N/A 1.535 3/4 1/4" M14 X 1.5
F-DL9004-10-16-W 0.250 N/A N/A N/A N/A 7/8 1/4" M16 X 1.5
F-DL9006-10-16-W 0.375 N/A N/A N/A N/A 7/8 3/8" M16 X 1.5
F-DL9006-12-18-W 0.375 2.830 1.6 N/A 1.860 15/16 3/8" M18 X 1.5
F-DL9008-15-22-W 0.500 3.486 2.146 N/A 2.260 1-1/16 1/2" M22 X 1.5
F-DL9008-18-26-W 0.500 N/A N/A N/A N/A 1-1/4 1/2" M26 X 1.5
F-DL9010-18-26-W 0.625 4.613 2.613 N/A 2.547 1-1/4 5/8" M26 X 1.5
F-DL9012-18-26-W 0.750 4.344 2.465 N/A 2.547 1-1/4 3/4" M26 X 1.5
F-DL9012-22-30-W 0.750 4.689 2.810 N/A 2.671 1-7/16 3/4" M30 X 2.0
F-DL9016-28-36-W 1.000 5.015 2.89 N/A 3.126 1-3/4 1.000" M36 X 2.0
F-DL9020-35-45-W 1.250 N/A N/A N/A N/A 2.000 1-1/4" M45 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
