F-KOMX-06-14-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M14X1.5 Female Komatsu JIS 30° Seat Swivel | Carbon Steel

Name: F-KOMX-06-14-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x M14X1.5 Female Komatsu JIS 30° Seat Swivel | Carbon Steel
Brand: Kurt Hydraulics
SKU: F-KOMX-06-14-K2 Kurt
Price: 38.61 USD
Availability: InStock

Save $4.83

$43.44

$43.44 - $43.44

$43.44

$38.61

$38.61 - $38.61

$38.61

Kurt Hydraulics
Komatsu JIS 30° Seat Female Swivel

Quantity

Specifications for Variant SKU: F-KOMX-06-14-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel
Special Properties:	Swivel

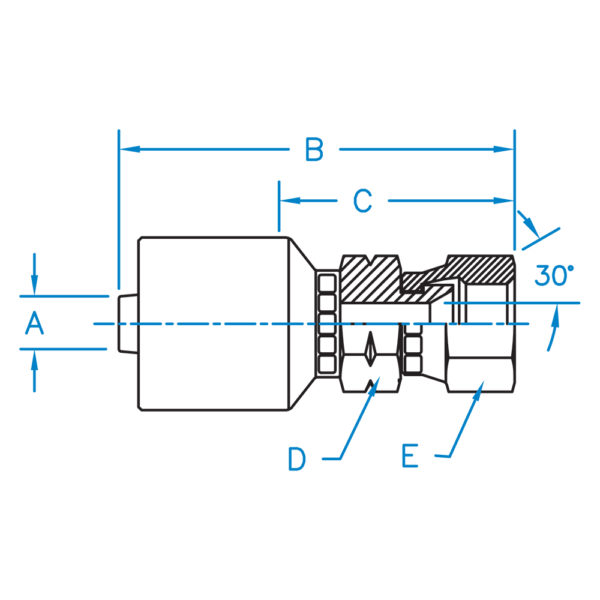

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
F-KOMX-04-14-K2	1/4"	2.27"	1.21"	9/16"	11/16"	M14 x 1.5
F-KOMX-06-14-K2	3/8"	2.48"	1.11"	11/16"	11/16"	M14 x 1.5
F-KOMX-06-18-K2	3/8"	2.52"	1.15"	11/16"	7/8"	M18 x 1.5
F-KOMX-08-22-K2	1/2"	2.63"	1.29"	7/8"	1-1/16"	M22 x 1.5
F-KOMX-08-24-K2	1/2"	2.62"	1.28"	7/8"	1-1/4"	M24 x 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
