F-KOMX-10-24 by Kurt Hydraulics | Female Komatsu JIS 30° Seat | Swivel | for 5/8" Hose ID

Name: F-KOMX-10-24 by Kurt Hydraulics | Female Komatsu JIS 30° Seat | Swivel | for 5/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-KOMX-10-24 Kurt
Price: 20.03 USD
Availability: InStock

Save $2.50

$22.53

$22.53 - $22.53

$22.53

$20.03

$20.03 - $20.03

$20.03

by Kurt Hydraulics
F-KOMX - Komatsu JIS 30 deg. Seat Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-KOMX-10-24 Kurt
Series:	KOMX Series
Shape (Orientation):	Straight
Special Properties:	Swivel

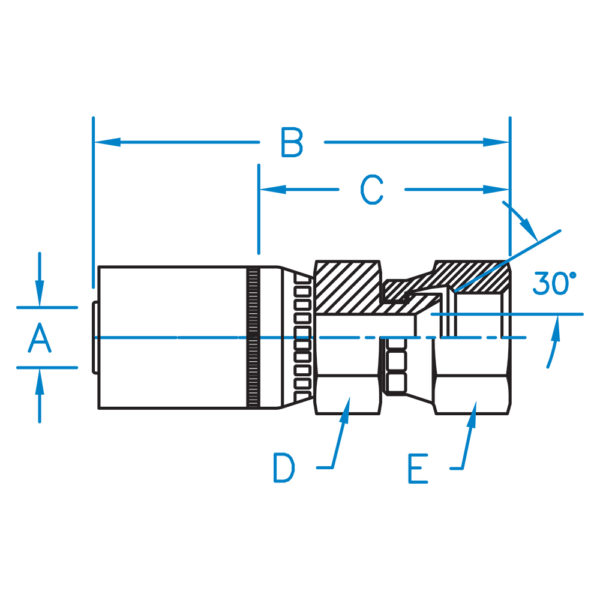

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-KOMX-04-14	0.250	2.548	1.293	9/16	3/4	1/4"	M14 X 1.5
F-KOMX-06-18	0.375	2.871	1.371	3/4	15/16	3/8"	M18 X 1.5
F-KOMX-08-22	0.500	3.126	1.624	7/8	1-1/16	1/2"	M22 X 1.5
F-KOMX-08-24	0.500	N/A	N/A	N/A	N/A	1/2"	M24 X 1.5
F-KOMX-10-24	0.625	3.036	1.536	1-1/8	1-3/16	5/8"	M24 X 1.5
F-KOMX-12-30	0.750	3.471	1.882	1-1/8	1-1/2	3/4"	M30 X 1.5
F-KOMX-16-33	1.000	3.816	2.082	1-3/8	1-5/8	1.000"	M33 X 1.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
