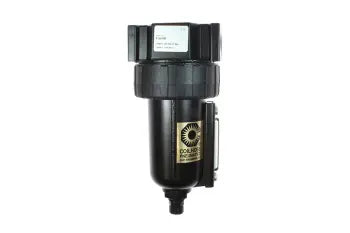

F340MB by Coilhose | General Purpose Series Filter | 3/4" Pipe Size with Metal Bowl | Zinc Die Cast

F340MB by Coilhose | General Purpose Series Filter | 3/4" Pipe Size with Metal Bowl | Zinc Die Cast

Save $160.69 Save $160.69
$401.72
$401.72 - $401.72
$401.72
$241.03
$241.03 - $241.03
$241.03
Coilhose Pneumatics - Filters, Regulators & Lubricators - General Purpose Series - Filters
Specifications for Variant SKU: F340MB Coilhose
Material(s): Polycarbonate, Polypropylene, Zinc
Overview:
  • The General Purpose Series Filters offers port sizes from 1/4" through 2". This size range allows a reliable interchange with other manufactures. Units are manufactured with zinc die cast bodies and available with plastic bowls with guards or metal bowls. An excellent choice for most industrial applications.
Features:
  • 40 micron filter element.
  • Bowl volumes from 5 oz to 20 oz.
  • Bowl guards are standard on plastic bowls.
  • Automatic drain available.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure: Plastic Bowl: 150 PSI Metal Bowl: 250 PSI Maximum Operating Temp.: Plastic Bowl: 120° F Metal Bowl: 150° F
Filter Element: Standard: 40 Micron Materials: Plastic Bowl: Polycarbonate Metal Bowl: Zinc Die Cast Body: Zinc Die Cast Filter Element:Polypropylene

Supply Pressure Pressure Drop
1 2 3 4 5
1/4" 25 SCFM 35 SCFM 42 SCFM 50 SCFM 55 SCFM
3/8" 26 SCFM 50 SCFM 60 SCFM 70 SCFM 76 SCFM
1/2" 38 SCFM 61 SCFM 80 SCFM 95 SCFM 108 SCFM
3/4" 115 SCFM 160 SCFM 200 SCFM 240 SCFM 260 SCFM
1" 160 SCFM 220 SCFM 270 SCFM 320 SCFM 350 SCFM
1-1/4" 160 SCFM 230 SCFM 285 SCFM 340 SCFM 380 SCFM
1-1/2" 160 SCFM 230 SCFM 285 SCFM 340 SCFM 380 SCFM
Note: All values are approximate.

Model Pipe Size Bowl Drain Material Max Pressure Micron Level
F140BG 1/4" Bowl Guard Manual Polycarbonate 150 PSI 40 Micron Element
F380BG 3/8" Bowl Guard Manual Polycarbonate 150 PSI 40 Micron Element
F120BG 1/2" Bowl Guard Manual Polycarbonate 150 PSI 40 Micron Element
F120MB 1/2" Metal Bowl Manual Metal 250 PSI 40 Micron Element
F340MB 3/4" Metal Bowl Manual Metal 250 PSI 40 Micron Element
F100MB 1" Metal Bowl Manual Metal 250 PSI 40 Micron Element
F1120MB 1-1/2" Metal Bowl Manual Metal 250 PSI 40 Micron Element
