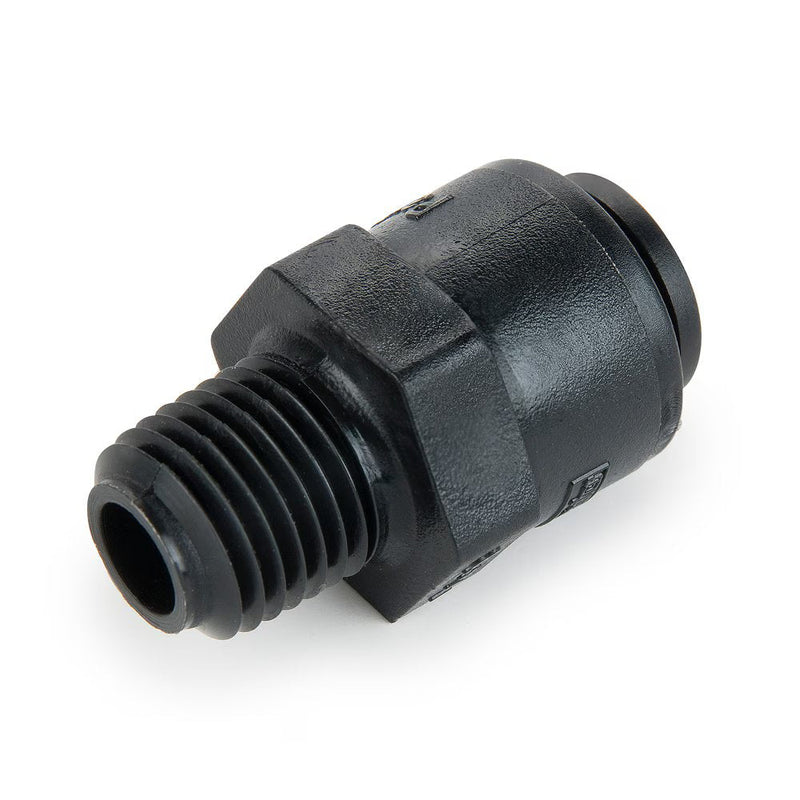

FB6MCVC4-HBLK-05 by Parker | Check Valve | 3/8" Tube OD x 1/4" Male NPTF Thread | Straight | Black | Kynar®

Save $1.22

$15.22

$15.22 - $15.22

$15.22

$14.00

$14.00 - $14.00

$14.00

by Parker Hannifin
TrueSeal™ Check Valves:MCVC Kynar® Check Valves

Quantity

Specifications for Variant SKU: FB6MCVC4-HBLK-05 Parker
Brand:	TrueSeal™
Shape (Orientation):	Straight
Material(s):	PVDF
Seal Material(s):	FKM
Special Properties:	Food Grade, Filtration

Materials of Construction:
Push-to-Connect check valves that ensures protection against reversal of flow. The valves have an arrow molded into the body to indicate the direction of flow. Valves are designed for connection with either thermoplastic or soft metal tubing and are intended for use with liquids only.
Body	Acetal
O-Ring	EPDM
Metal Grip Edge	300 Stainless
Working Pressure	Up to 150 PSI (10.3 bar) depending on tubing being used
Temperature Range	+34° to +150° F (+1° to +65° C)
Cracking Pressure	1/3 PSI (0.02 bar)


Part Number	Tube O.D.	NPTF Thread	L	C Hex	Cracking Pressure PSI
FB6MCVC4-HBLK-05	3/8"	1/4"	1.40"	13/16"	.5

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
