Eaton Aeroquip® High Performance

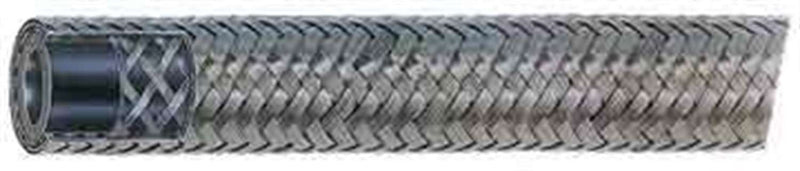

AQP® Racing Hose with Stainless Steel Cover

The most popular racing hose in the market for over 60 years - made in the U.S.A.

AQP Racing Hose is compatible with petroleum and synthetic lubricants, hydrocarbon fuels and liquid engine coolants. It operates at higher temperatures for longer periods. Light and flexible, it is easy to work with, and its stainless steel cover will ensure long-lasting durability.

AQP Racing Hose also features an AQP elastomer inner tube that is resistant to oxidation, the effects of ozone and other various agents present in the air. Changes in physical properties due to shelf aging are nonexistent.

Quantity

Specifications for Variant SKU: FBA1000 Eaton HP
Brand:	Aeroquip Performance Products
Series:	AQP® Racing Hose
Hose Color(s):	Metallic
Internal Diameter:	0.56in
Outer Diameter:	0.80in
Tubing Construction:	AQP Elastomer
Cover Construction:	Stainless Steel Braid

SPECIFICATIONS

Application:	Fuel, lube, coolant, air	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	AQP elastomer
Reinforcement:	Partial stainless steel wire inner braid reinforcement.	Cover:	Full stainless steel outer braid reinforcement
Temperature Range:	Continuous operating temperature from -55°F to +300°F (-49°C to +150°C).	Crimp Fittings:	AQP® Racing Hose Crimp Fittings
Reusable Fittings:	AQP® Racing Hose Reusable Fittings

Bulk Part Number	Hose Dash Size	Hose ID (in)	Max. Hose OD (in)	Max. Operating Pressure (PSI)	Bend Radius (in)	Weight Per Foot (lbs)	Vacuum Service (in/Hg)
FBA0400	-04	0.22"	0.44"	1000/750 PSI	2.00"	0.11 lbs	21 in/Hg
FBA0600	-06	0.34"	0.55"	1000/750 PSI	2.50"	0.16 lbs	21 in/Hg
FBA0800	-08	0.44"	0.65"	1000/750 PSI	3.50"	0.17 lbs	21 in/Hg
FBA1000	-10	0.56"	0.80"	1000/750 PSI	4.00"	0.21 lbs	28 in/Hg
FBA1200	-12	0.69"	0.94"	1000/750 PSI	4.50"	0.29 lbs	28 in/Hg
FBA1600	-16	0.88"	1.15"	750/750 PSI	5.50"	0.38 lbs	28 in/Hg
FBA2000	-20	1.13"	1.41"	500 PSI	8.00"	0.49 lbs	21 in/Hg
FBA2400	-24	1.34"	1.70"	50 PSI	9.00"	0.80 lbs	21 in/Hg
FBA3200	-32	1.75"	2.09"	50 PSI	12.50"	0.98 lbs	15 in/Hg

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
