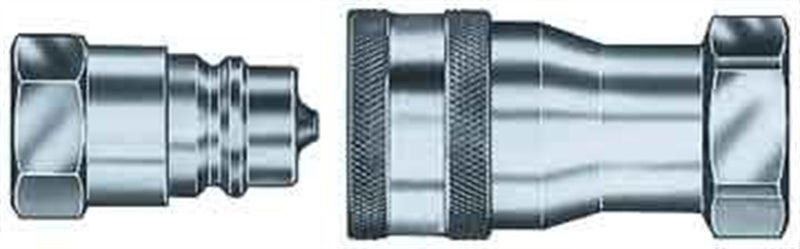

FBM3015 Eaton Aeroquip® PUSH-PULL™ Quick-Disconnect Hydraulic Coupling - 3/4-14 Female NPT x Female NPT - Steel

FBM3015 Eaton Aeroquip® PUSH-PULL™ Quick-Disconnect Hydraulic Coupling - 3/4-14 Female NPT x Female NPT - Steel

$64.69 - $64.69
$64.69
$68.85
$68.85 - $68.85
$68.85

Eaton Aeroquip® High Performance
PUSH-PULL™ Quick-Disconnect Hydraulic Coupling

PUSH-PULL™ Self-Sealing Couplings are ideal for most hydraulic and fluid applications requiring a quick connect/disconnect coupling.

The coupling bodies are constructed of high quality plated steel.

Coupling uses Buna-N seals.
Specifications for Variant SKU: FBM3015 Eaton HP
Shape (Orientation): Straight
Material(s): Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber
PUSH-PULL™ Quick-Disconnect Hydraulic Couplings
Steel
Part Number		 Pipe Thread Size Max. Operating
Pressure		 Air Inclusion
(C.C. Max)		 Fluid Loss
(C.C. Max)		 Rated Flow Coupled
Length		 Vacuum
Service
FBM3011 1/4-18 5000 PSI 0.50 0.50 1 GPM 2.53" 28 in/Hg.
FBM3012 3/8-18 4000 PSI 1.50 1.30 6 GPM 2.80" 28 in/Hg.
FBM3015 3/4-14 4000 PSI 10.0 8.2 28 GPM 4.56" 28 in/Hg.
FBM3016 1-11-1/2 4000 PSI 14.2 14.2 50 GPM 5.54" 28 in/Hg.

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Danfoss High Performance

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
