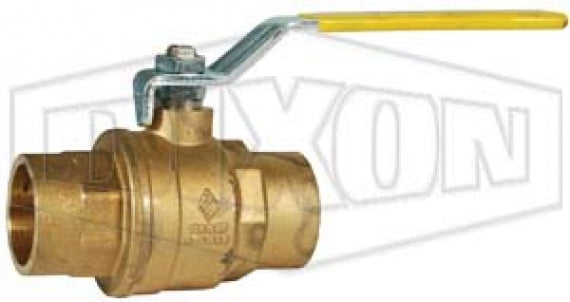

FBV125SE by Dixon Valve | Solder End Ball Valve | Full Port | 1-1/4" Female NPT x 1-1/4" Female NPT | Brass

FBV125SE by Dixon Valve | Solder End Ball Valve | Full Port | 1-1/4" Female NPT x 1-1/4" Female NPT | Brass

Save $5.96 Save $5.96
$74.55
$74.55 - $74.55
$74.55
$68.59
$68.59 - $68.59
$68.59

Dixon Valve & Coupling
Solder End Ball Valve | Brass

Provides protection against potential gas leakage under extreme duty or low pressure applications.
Specifications for Variant SKU: FBV125SE Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
  • Adjustable stem packing nut.
Materials:
  • Body: Forged Brass.
  • Chrome-plated brass ball.
  • PTFE seat, seal, and thrust washer.
Specifications:
  • Pressure rating: 600 PSI WOG; 150 PSI working steam pressure.
  • Maximum temperature: 366°F (186°C).
Part Number Female NPT x Female NPT Port
FBV50SE 1/2" Full
FBV75SE 3/4" Full
FBV100SE 1" Full
FBV125SE 1-1/4" Full
FBV150SE 1-1/2" Full
FBV200SE 2" Full
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
