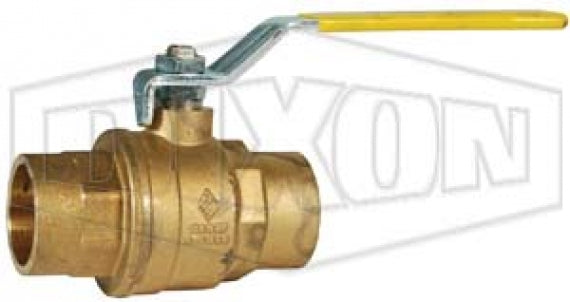

FBV150SE by Dixon Valve | Solder End Ball Valve | Full Port | 1-1/2" Female NPT x 1-1/2" Female NPT | Brass

FBV150SE by Dixon Valve | Solder End Ball Valve | Full Port | 1-1/2" Female NPT x 1-1/2" Female NPT | Brass

Save $8.82 Save $8.82
$110.22
$110.22 - $110.22
$110.22
$101.40
$101.40 - $101.40
$101.40

Dixon Valve & Coupling
Solder End Ball Valve | Brass

Provides protection against potential gas leakage under extreme duty or low pressure applications.
Specifications for Variant SKU: FBV150SE Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
  • Adjustable stem packing nut.
Materials:
  • Body: Forged Brass.
  • Chrome-plated brass ball.
  • PTFE seat, seal, and thrust washer.
Specifications:
  • Pressure rating: 600 PSI WOG; 150 PSI working steam pressure.
  • Maximum temperature: 366°F (186°C).
Part Number Female NPT x Female NPT Port
FBV50SE 1/2" Full
FBV75SE 3/4" Full
FBV100SE 1" Full
FBV125SE 1-1/4" Full
FBV150SE 1-1/2" Full
FBV200SE 2" Full
