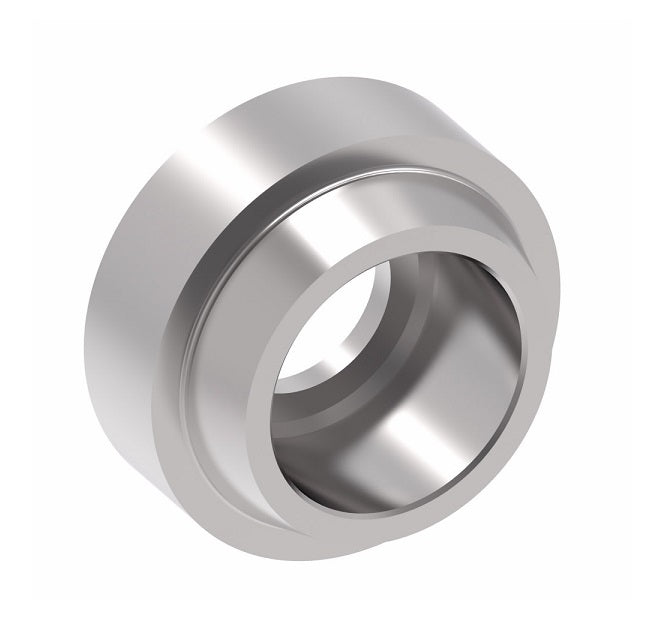

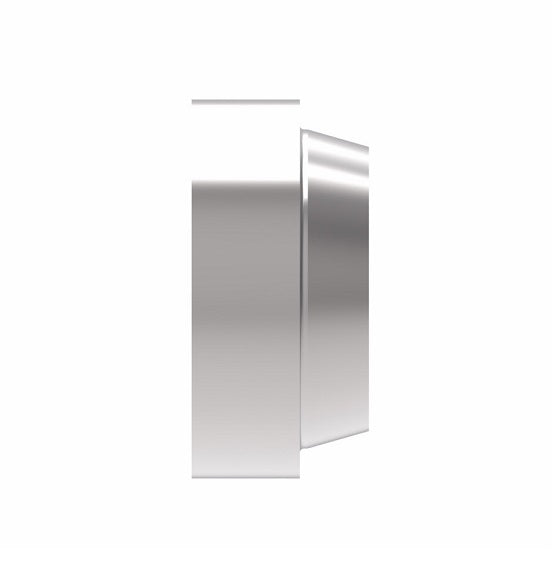

FC1229-1616S Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -16 O-Ring Face Seal x -16 Braze End | Steel

Save $1.72 Save $1.72
Original price $17.20
Original price $17.20 - Original price $17.20
Original price $17.20
Current price $15.48
$15.48 - $15.48
Current price $15.48

Aeroquip® by Danfoss
ORS-BR Shoulder Internal Braze Adapter
O-Ring Face Seal x Braze End

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: FC1229-1616S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in O-Ring Face Seal X 1in Braze End
Material(s): Steel
Specifications:
  • Ref. SAE 520115
Construction:
  • Buna-N O-Rings are standard.
Warning:
  • In applications exceeding +480°F (such as during brazing) order the oil-coated/ non-plated nut by using part number FC1857- Size-186. When plating is heated above +480°F, toxic gases are given off.
Steel Part Number Brass Part Number Tube OD A B F
FC1229-0404S - 0.25" 0.29" 0.25" 0.25"
FC1229-0604S - 0.38" 0.33" 0.25" 0.25"
FC1229-0606S FC1229-0606B 0.38" 0.29" 0.25" 0.38"
FC1229-0808S FC1229-0808B 0.50" 0.42" 0.38" 0.50"
FC1229-1010S - 0.63" 0.42" 0.38" 0.62"
FC1229-1212S FC1229-1212B 0.75" 0.44" 0.38" 0.75"
- FC1229-1414B - - - -
FC1229-1612S - 1.00" 0.55" 0.38" 0.75"
- FC1229-1614B 1.00" 0.56" 0.44" 0.88"
FC1229-1616S - 1.00" 0.56" 0.50" 1.00"
FC1229-2016S - 1.25" 0.68" 0.50" 1.00"
FC1229-2020S - 1.25" 0.56" 0.50" 1.25"
FC1229-2424S - 1.50" 0.56" 0.50" 1.50"

*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.
