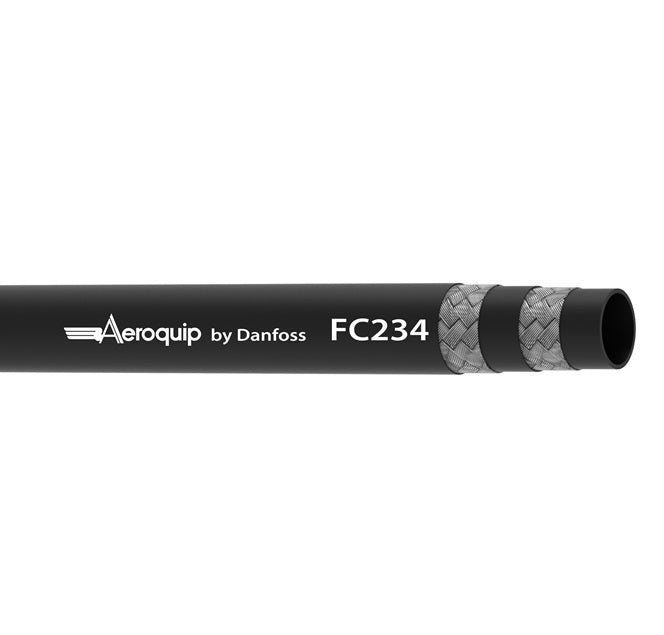

FC234-05 Aeroquip by Danfoss | High Temp Fuel & Oil Hose Braided Transportation Hose | SAE J1527 | Fire Resistant USCG/MMT, NMMA/BIA | 0.25" ID

FC234-05 Aeroquip by Danfoss | High Temp Fuel & Oil Hose Braided Transportation Hose | SAE J1527 | Fire Resistant USCG/MMT, NMMA/BIA | 0.25" ID

$21.44 - $21.44
$21.44
$21.44 - $21.44
$21.44

Aeroquip® by Danfoss
FC234 Series | High Temp Fuel & Oil Hose Braided Transportation Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC234-05RL Danfoss
Brand: Aeroquip
Series: FC234 Series
Hose Color(s): Blue
Internal Diameter: 0.25in
Outer Diameter: 0.58in
Tubing Construction: AQP Elastomer
Cover Construction: AQP Elastomer
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, DNV, SAE J1527A1, USCG
Hose Properties:
Application: Diesel fuel, gasoline
Hot lube oil
Water		 SAE Ratings: Meets: SAE J1527 Type A1
Other Ratings: Fire resistant USCG/MMT, NMMA/BIA Tube: AQP Elastomer
Reinforcement: Brass Plated Steel Wire Braided Refractory Insulation Cover: Blue AQP Elastomer
Operating Parameters: -40°F to +302°F (-40°C to +150°C)
Use with biodiesel not to exceed +212°F (+100°C) with B2 to B20
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
mm in mm in bar psi bar psi mm in kPa in Hg kg/m lbs/ft
FC234-05 6,4mm 0.25" 14,7mm 0.58" 105,0 bar 1500 psi 420,0 bar 6000 psi 25,4mm 1.00" 94,8 kPa 28 in. Hg 0,32 kg/m 0.22 lbs/ft
FC234-06 7,9mm 0.31" 17,3mm 0.68" 105,0 bar 1500 psi 420,0 bar 6000 psi 31,8mm 1.25" 94,8 kPa 28 in. Hg 0,37 kg/m 0.25 lbs/ft
FC234-08 10,4mm 0.41" 19,3mm 0.76" 87,0 bar 1250 psi 350,0 bar 5000 psi 44,5mm 1.75" 94,8 kPa 28 in. Hg 0,44 kg/m 0.30 lbs/ft
FC234-10 12,7mm 0.50" 23,9mm 0.94" 87,0 bar 1250 psi 350,0 bar 5000 psi 57,2mm 2.25" 94,8 kPa 28 in. Hg 0,66 kg/m 0.45 lbs/ft
FC234-12 16,0mm 0.63" 27,4mm 1.08" 52,0 bar 750 psi 210,0 bar 3000 psi 69,9mm 2.75" 67,7 kPa 20 in. Hg 0,71 kg/m 0.48 lbs/ft
FC234-16 22,4mm 0.88" 31,5mm 1.24" 28,0 bar 400 psi 112,0 bar 1600 psi 88,9mm 3.50" 54,2 kPa 16 in. Hg 0,75 kg/m 0.51 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
