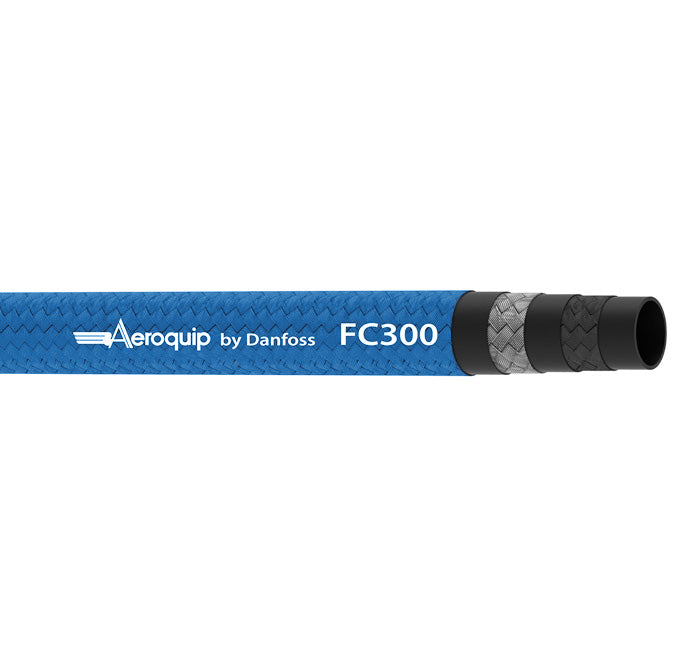

FC300-04 Aeroquip by Danfoss | High Temp Textile & Wire Braid Transportation Hose | SAE 100R5, SAE J1019, SAE J1402 | 0.19" ID


Aeroquip® by Danfoss
FC300 Series | High Temp Textile & Wire Braid Transportation Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC300-04 Danfoss
Brand: Aeroquip
Series: FC300 Series
Hose Color(s): Blue
Dash Size: -4
Internal Diameter: 0.19in
Outer Diameter: 0.52in
MAWP: 3000
Tubing Construction: AQP Elastomer
Cover Construction: Polyester Textile Braid
Applicable Specs & Approvals: ABS,D.O.T. FMVSS 106,DNV,SAE 100R5,SAE J1019,SAE J1402,USCG
Hose Properties:
Application: Hydraulics handling petroleum base fluids.
Air, gasoline, fuel and lubricating oils, fire resistant hydraulic fluids and other industrial fluids.
Not approved for use with E85.
SAE Ratings: Meets or exceeds: SAE 100R5, SAE J1019, SAE J1402, DOT/FMVSS 106 Type AII
Other Ratings: N/A Tube: AQP Elastomer
Reinforcement: Polyester Inner Braid, Single Wire Braid Cover: Blue Textile Braided
Operating Parameters: -55°F to +302°F (-49°C to +150°C)
Air not to exceed +250°F (+121°C)
Use with biodiesel not to exceed +212°F (+100°C) with B2 to B20
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
mm in mm in bar psi bar psi mm in kPa in Hg kg/m lbs/ft
FC300-04 4,8mm 0.19" 13,2mm 0.52" 210,0 bar 3000 psi 840,0 bar 12000 psi 76,2mm 3.00" 94,8 kPa 28 in Hg. 0,19 kg/m 0.13 lbs/ft
FC300-05 6,4mm 0.25" 14,7mm 0.58" 210,0 bar 3000 psi 840,0 bar 12000 psi 85,9mm 3.38" 94,8 kPa 28 in Hg. 0,24 kg/m 0.16 lbs/ft
FC300-06 7,9mm 0.31" 17,3mm 0.67" 157,0 bar 2250 psi 630,0 bar 9000 psi 101,6mm 4.00" 94,8 kPa 28 in Hg. 0,27 kg/m 0.23 lbs/ft
FC300-08 10,4mm 0.41" 19,6mm 0.76" 140,0 bar 2000 psi 560,0 bar 8000 psi 117,3mm 4.62" 94,8 kPa 28 in Hg. 0,32 kg/m 0.26 lbs/ft
FC300-10 12,7mm 0.50" 23,4mm 0.93" 122,0 bar 1750 psi 490,0 bar 7000 psi 139,7mm 5.50" 94,8 kPa 28 in Hg. 0,49 kg/m 0.37 lbs/ft
FC300-12 16,0mm 0.63" 27,4mm 1.08" 105,0 bar 1500 psi 420,0 bar 6000 psi 165,1mm 6.50" 94,8 kPa 28 in Hg. 0,58 kg/m 0.46 lbs/ft
FC300-16 22,4mm 0.88" 31,2mm 1.27" 56,0 bar 800 psi 224,0 bar 3200 psi 187,5mm 7.38" 67,7 kPa 20 in Hg.† 0,55 kg/m 0.44 lbs/ft
FC300-20† ‡ 28,4mm 1.12" 38,1mm 1.50" 43,0 bar 625 psi 175,0 bar 2500 psi 228,6mm 9.00" 67,7 kPa 20 in Hg.† 0,68 kg/m 0.52 lbs/ft
FC300-24† ‡ 35,1mm 1.38" 44,5mm 1.75" 35,0 bar 500 psi 140,0 bar 2000 psi 266,7mm 10.50" 50,8 kPa 15 in Hg.† 0,92 kg/m 0.67 lbs/ft
FC300-32† ‡ 46,0mm 1.81" 56,4mm 2.22" 21,0 bar 300 psi 84,0 bar 1200 psi 336,6mm 13.25" 37,3 kPa 11 in Hg.† 1,28 kg/m 0.94 lbs/ft
FC300-40† ‡ 60,1mm 2.38" 73,2mm 2.88" 21,0 bar 300 psi 84,0 bar 1200 psi 609,6mm 24.00" 27,1 kPa 8 in Hg.† 2,11 kg/m 1.50 lbs/ft

† Maximum negative pressure shown for -16 and larger are suitable for those which has suffered no external damage or kinking. If greater negative pressures are required for -16 and larger hoses, the use of an internal support coil is recommended.
‡ Does not meet SAE 100R5 pressure with reusable fittings. -32 size rated to 350 psi with crimp fittings.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
