Aeroquip® by Danfoss

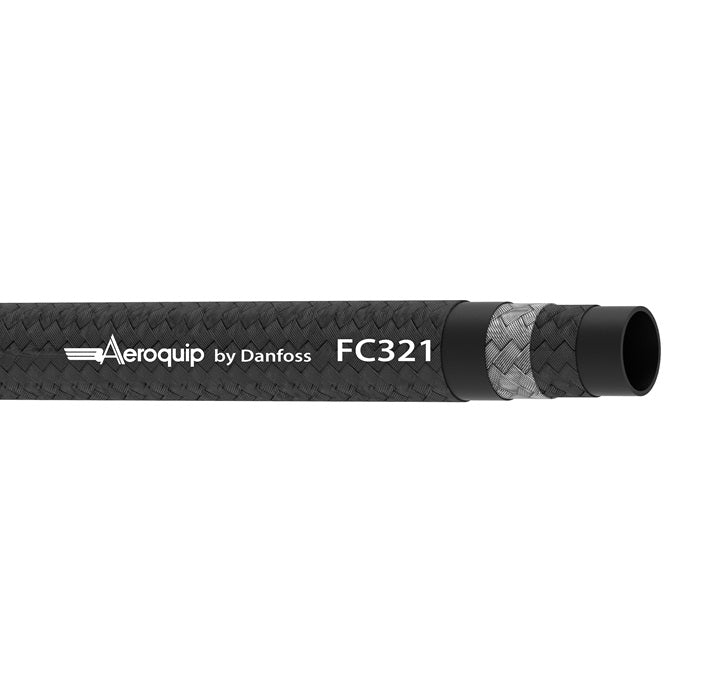

FC321 Series | LPG Stainless Steel Wire Braided Transportation Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC321-08 Danfoss
Brand: Aeroquip
Series: FC321 Series
Hose Color(s): Black
Internal Diameter: 0.41in
Outer Diameter: 0.77in
Tubing Construction: Synthetic Rubber
Cover Construction: Polyester Textile Braid
Applicable Specs & Approvals: UL Listing MH6044
Hose Properties:
Application: Designed for butane-propane applications on either mobile or stationary equipment. SAE Ratings: N/A
Other Ratings: Meets: UL Listing MH6044 Tube: Synthetic Rubber
Reinforcement: Textile Inner Braid, a Stainless Steel Wire Braid Cover: Synthetic Rubber Impregnated Textile Braid
Operating Parameters: -40°F to +250°F (-40°C to +121°C)

WARNING: LPG is a very hazardous liquid or gas and should be handled with maximum care to prevent leakage. Since the gas is heavier than air, it may flow along the ground if it escapes and cause an explosion or a fire. No leakage should ever be tolerated.

Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC321-04 4,8mm 0.19" 13,2mm 0.52" 24,0 bar 350 psi 122,0 bar 1750 psi 38,1mm 1.50" 0,16 kg/m 0.11 lbs/ft
FC321-05 - 0.25" - 0.58" 24,0 bar 350 psi 122,0 bar 1750 psi - 1.75" - 0.13 lbs/ft
FC321-06 7,9mm 0.31" 17,0mm 0.67" 24,0 bar 350 psi 122,0 bar 1750 psi 50,8mm 2.00" 0,27 kg/m 0.18 lbs/ft
FC234-08 10,4mm 0.41" 19,6mm 0.77" 24,0 bar 350 psi 122,0 bar 1750 psi 58,7mm 2.31" 0,31 kg/m 0.21 lbs/ft
FC321-10 12,7mm 0.50" 23,4mm 0.92" 24,0 bar 350 psi 122,0 bar 1750 psi 69,9mm 2.75" 0,43 kg/m 0.29 lbs/ft
FC321-12 16,0mm 0.63" 27,4mm 1.08" 24,0 bar 350 psi 122,0 bar 1750 psi 82,6mm 3.25" 0,55 kg/m 0.37 lbs/ft
FC321-16 22,4mm 0.88" 31,5mm 1.24" 24,0 bar 350 psi 122,0 bar 1750 psi 93,7mm 3.69 " 0,56 kg/m 0.38 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
