FC350-08 Aeroquip by Danfoss | Engine & Air Brake Hose | SAE J1402 | 0.41" ID | Black

FC350-08 Aeroquip by Danfoss | Engine & Air Brake Hose | SAE J1402 | 0.41" ID | Black

Minimum Order Quantity: 525 Feet

$11.86 - $11.86
$11.86
$11.86 - $11.86
$11.86

Aeroquip® by Danfoss

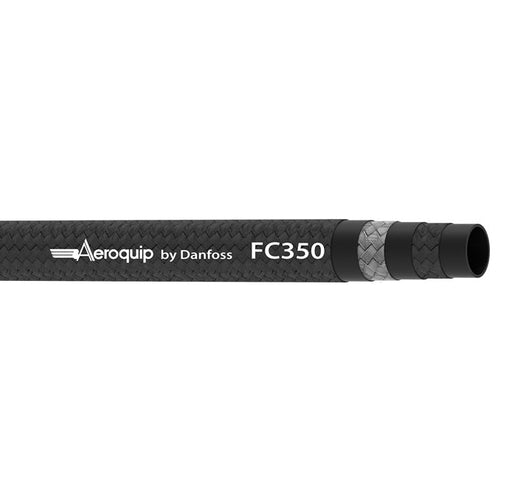

FC350 Series | Engine & Air Brake Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC350-08RL Danfoss
Brand: Aeroquip
Series: FC350 Series
Hose Color(s): Black
Internal Diameter: 0.41in
Outer Diameter: 0.77in
Tubing Construction: AQP Elastomer
Cover Construction: Polyester Textile Braid
Applicable Specs & Approvals: ABS, D.O.T. FMVSS 106, DNV, SAE J1402, USCG
Hose Properties:
Application: Air brake, gasoline, fuel, lubricating oils and coolants.
Truck and engine maintenance - Engine and air brake.		 SAE Ratings: Meets: SAE J1402, DOT/FMVSS 106 Type AII
Other Ratings: N/A Tube: AQP Elastomer
Reinforcement: Polyester Inner Braid and a Single Wire Braid Cover: Black Textile Braided
Operating Parameters: -55°F to +302°F (-49°C to +150°C)
Air not to exceed +250°F (+121°C)
Biodiesel use up to B20 and max temperature of +212°F (+100°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
mm in mm in bar psi bar psi mm in kPa in Hg kg/m lbs/ft
FC350-04 4,8mm 0.19" 13,2mm 0.52" 140,0 bar 2000 psi 560,0 bar 8000 psi 19,1mm 0.75" 94,8kPa 28 in Hg 0,22 kg/m 0.13 lbs/ft
FC350-05 6,4mm 0.25" 14,7mm 0.58" 105,0 bar 1500 psi 420,0 bar 6000 psi 25,4mm 1.00" 94,8kPa 28 in Hg 0,34 kg/m 0.16 lbs/ft
FC350-06 7,9mm 0.31" 17,3mm 0.68" 105,0 bar 1500 psi 420,0 bar 6000 psi 31,8mm 1.25" 94,8kPa 28 in Hg 0,35 kg/m 0.20 lbs/ft
FC350-08 10,4mm 0.41" 19,6mm 0.77" 87,0 bar 1250 psi 350,0 bar 5000 psi 44,5mm 1.75" 94,8kPa 28 in Hg 0,43 kg/m 0.23 lbs/ft
FC350-10 12,7mm 0.50" 23,9mm 0.94" 87,0 bar 1250 psi 350,0 bar 5000 psi 57,2mm 2.25" 94,8kPa 28 in Hg 0,59 kg/m 0.33 lbs/ft
FC350-12 16,0mm 0.63" 27,4mm 1.08" 52,0 bar 750 psi 210,0 bar 3000 psi 69,9mm 2.75" 67,7kPa 20 in Hg 0,68 kg/m 0.39 lbs/ft
FC350-16 22,4mm 0.88" 31,2mm 1.23" 28,0 bar 400 psi 112,0 bar 1600 psi 88,9mm 3.50" 50,8kPa 15 in Hg 0,74 kg/m 0.50 lbs/ft
FC350-20 28,4mm 1.12" 38,1mm 1.50" 21,0 bar 300 psi 84,0 bar 1200 psi 114,3mm 4.50" 50,8kPa 15 in Hg 0,87 kg/m 0.56 lbs/ft
FC350-24 35,1mm 1.38" 44,5mm 1.75" 17,0 bar 250 psi 70,0 bar 1000 psi 139,7mm 5.50" 37,2kPa 11 in Hg 1,02 kg/m 0.63 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
