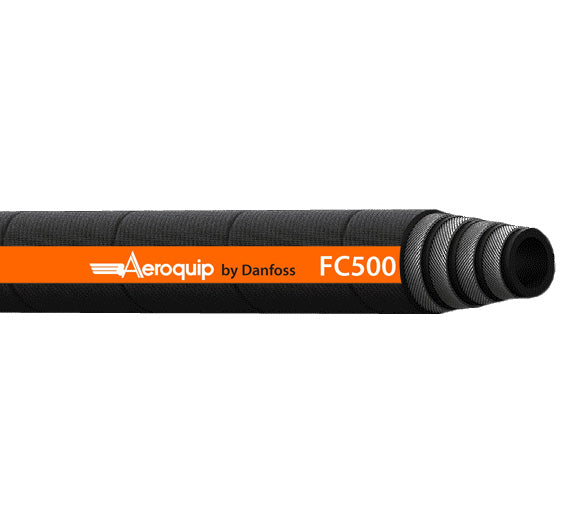

FC500-12 Aeroquip by Danfoss | X-FLEX Spiral 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose | SAE 100R13 | 0.75" ID

FC500-12 Aeroquip by Danfoss | X-FLEX Spiral 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose | SAE 100R13 | 0.75" ID

$36.74 - $36.74
$36.74
$36.74 - $36.74
$36.74

Aeroquip® by Danfoss
FC500Series | X-FLEX Spiral 1/2 SAE Bend Radius Premium 4-Spiral Wire Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Specifications for Variant SKU: FC500-12 Danfoss
Brand: Aeroquip
Series: FC500 Series
Hose Color(s): Black
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.22in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, DNV, EN856 Type R13, SAE 100R13, USCG
Hose Properties:
Application: Hydraulic system service with petroleum, and water-based fluids.
For low temperature applications.		 SAE Rating: Meets or exceeds: SAE 100R13, EN 856 Type R13, ISO 18752, ISO 3862 Type R13 performance.
Other Ratings: MSHA Accepted, ABS Accepted Tube: Synthetic Rubber
Reinforcement: 4-Spiral Wire in -12 to -24
6-Spiral Wire in -32		 Cover: DURA-TUFF™ Synthetic Rubber
Temperature Range: -40°F to +260°F
(-40°C to +127°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC500-12 19 19,0mm 0.75" 31,0mm 1.22" 350,0 bar 5100 psi 1400,0 bar 20400 psi 121,0mm 4.75" 1,28 kg/m 0.86 lbs/ft
FC500-16 25 25,4mm 1.00" 38,4mm 1.51" 350,0 bar 5100 psi 1400,0 bar 20400 psi 152,0mm 6.00" 1,85 kg/m 1.24 lbs/ft
FC500-20 31 31,8mm 1.25" 45,5mm 1.79" 350,0 bar 5100 psi 1400,0 bar 20400 psi 210,0mm 8.25" 2,50 kg/m 1.68 lbs/ft
FC500-24 38 38,1mm 1.50" 53,5mm 2.11" 350,0 bar 5100 psi 1400,0 bar 20400 psi 254,0mm 10.00" 3,38 kg/m 2.27 lbs/ft
FC500-32 51 50,8mm 2.00" 71,8mm 2.83" 350,0 bar 5100 psi 1400,0 bar 20400 psi 476,0mm 18.75" 6,07 kg/m 4.08 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
