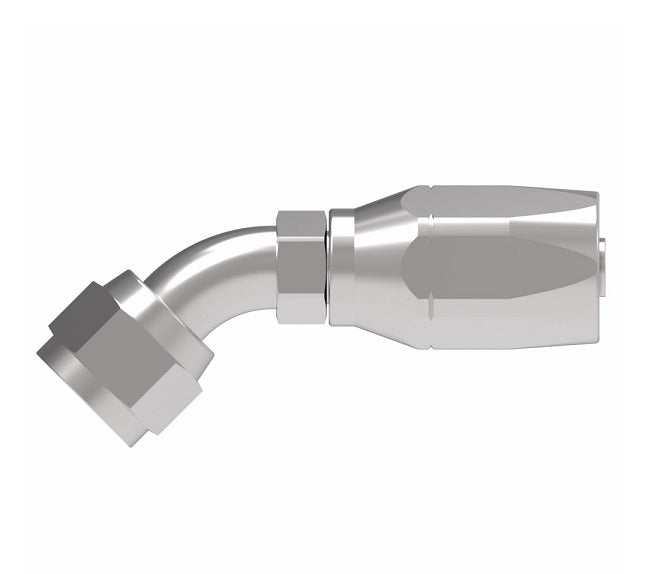

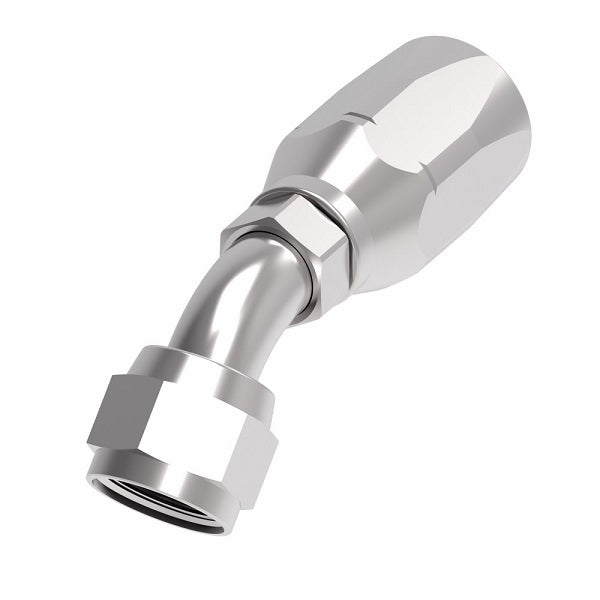

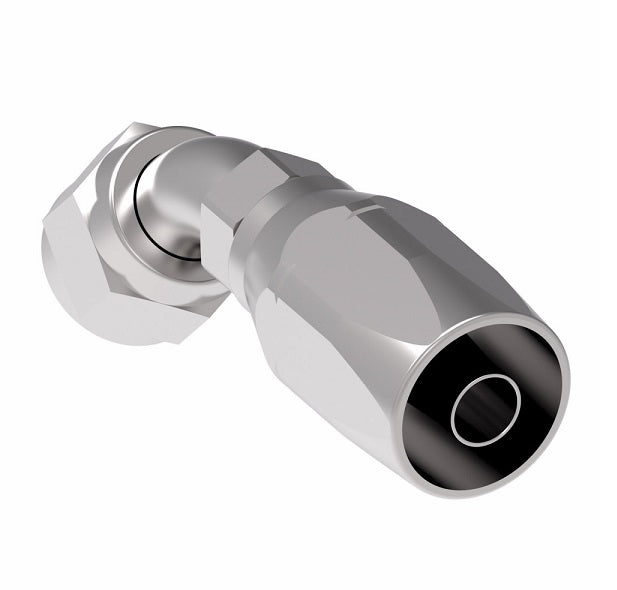

FC5144-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel 45° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
FC5144-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel 45° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
FC5144-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel 45° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
FC5144-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel 45° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

FC5144-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel 45° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$114.11 - $114.11
$114.11
$114.11 - $114.11
$114.11

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5144-1212S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC310 Series  |   FC510 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
FC5144-0404S -04 7/16-20 2.47" 1.25" 0.17" 0.33"
FC5144-0808S -08 3/4-16 3.30" 1.73" 0.39" 0.55"
FC5144-1212S -12 11/16-12 4.15" 2.28" 0.61" 0.78"
