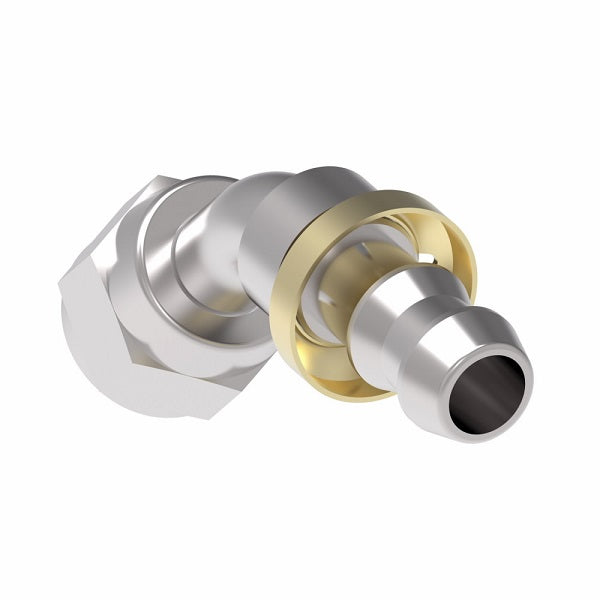

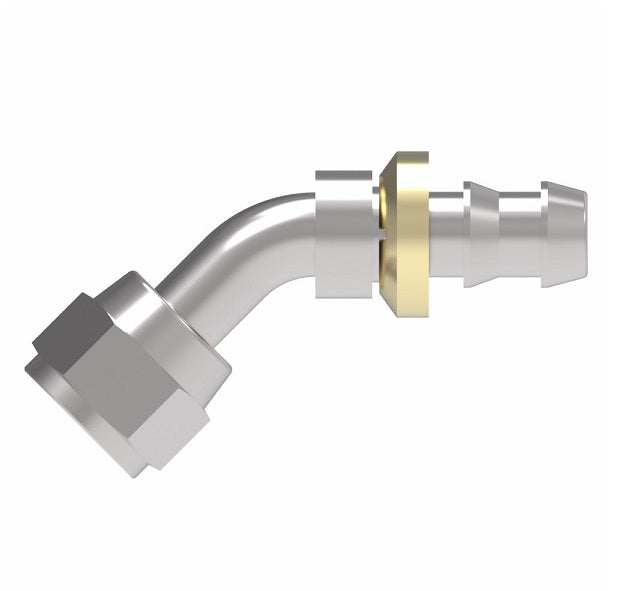

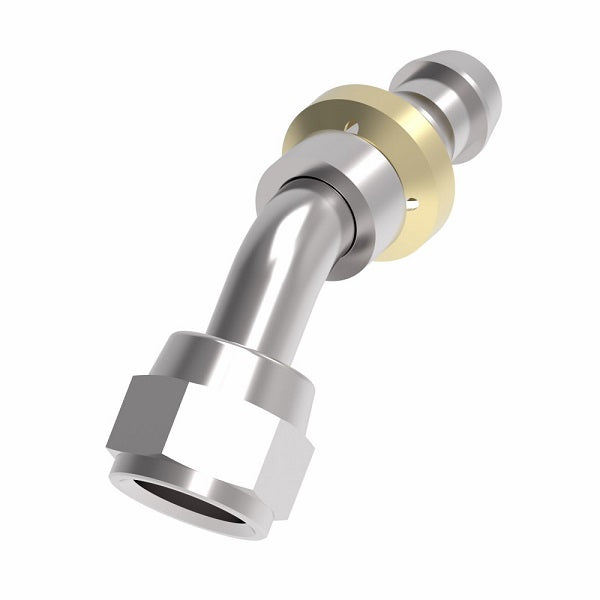

FC5848-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

FC5848-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Push-On Hose Barb | Steel

Name: FC5848-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Socketless Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC5848-0606S Danfoss
Price: 55.16 USD
Availability: InStock

$55.16 - $55.16

$55.16

$55.16 - $55.16

$55.16

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - FC Series - Female SAE 45° Swivel - 45° Elbow

Single notch in nut for SAE 45° identification.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5848-0606S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Female SAE 45 Flare, 3/8in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread Size	A	D	EØ	H
FC5848-0606S	-06	5/8-18	1.80"	0.93"	0.30"	0.39"
