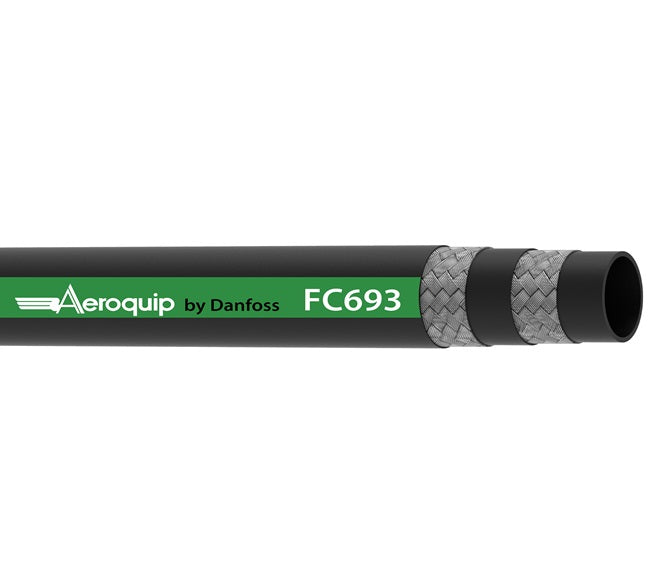

FC693-06 Aeroquip by Danfoss | EPDM 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | 0.38" ID

FC693-06 Aeroquip by Danfoss | EPDM 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | 0.38" ID

$21.00 - $21.00
$21.00
$21.00 - $21.00
$21.00

Aeroquip® by Danfoss
FC693 Series | EPDM 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Bulk Lengths may come in multiple sections unless otherwise stated.
Specifications for Variant SKU: FC693-06 Danfoss
Brand: Aeroquip, MatchMate
Series: FC693 Series
Hose Color(s): Blue
Dash Size: -6
Internal Diameter: 0.38in
Outer Diameter: 0.75in
Tubing Construction: EPDM
Cover Construction: EPDM
Compatible with the following Series: 1AA MatchMate Series
Hose Properties:
Application: Ground support equipment (GSE), industrial phosphate ester-based fluids, water glycol systems. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM Rubber
Reinforcement: Double Wire Braid Cover: Green EPDM Rubber
Temperature Range: -40°F to +175°F
(-40°C to +75°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC693-04 6 6,4mm 0.25" 15,2mm 0.60" 350,0 bar 5000 psi 1400,0 bar 20000 psi 101,6mm 4.00" 0,37 kg/m 0.25 lbs/ft
FC693-06 10 9,7mm 0.38" 19,1mm 0.75" 280,0 bar 4000 psi 1120,0 bar 16000 psi 127,0mm 5.00" 0,54 kg/m 0.36 lbs/ft
FC693-08 12 12,7mm 0.50" 22,1mm 0.87" 245,0 bar 3500 psi 980,0 bar 14000 psi 177,8mm 7.00" 0,60 kg/m 0.40 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
