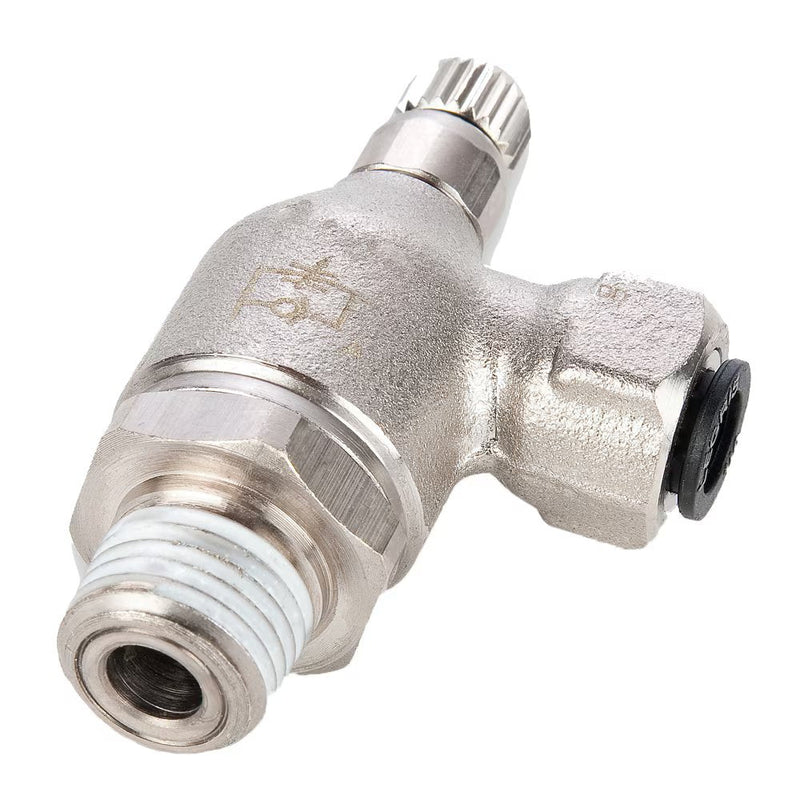

FC705-4-2 by Parker | Push-to-Connect Meter Out Metal Flow Control | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 19 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5

FC705-4-2 by Parker | Push-to-Connect Meter Out Metal Flow Control | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 19 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5

Save $127.42 Save $127.42
$318.55
$318.55 - $318.55
$318.55
$191.13
$191.13 - $191.13
$191.13

by Parker Hannifin
Metal Flow Controls:FC705 Push-to-Connect Meter Out Metal Flow Control

Package Quantity: 5 Units

Specifications for Variant SKU: FC705-4-2 Parker | 5 |
Series: FC705 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Petrochemical, Valved, Flow Control
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size NPT Hex 1 Hex 2 H Closed H Open L
FC705-4-2 1/4" 1/8" 19 mm 10 mm 1.79" 2.01" .97"
FC705-4-4 1/4" 1/4" 19 mm 10 mm 1.79" 2.01" .97"
FC705-6-4 3/8" 1/4" 19 mm 14 mm 1.91" 2.11" 1.14"
FC705-6-6 3/8" 3/8" 25 mm 17 mm 2.15" 2.40" 1.40"
