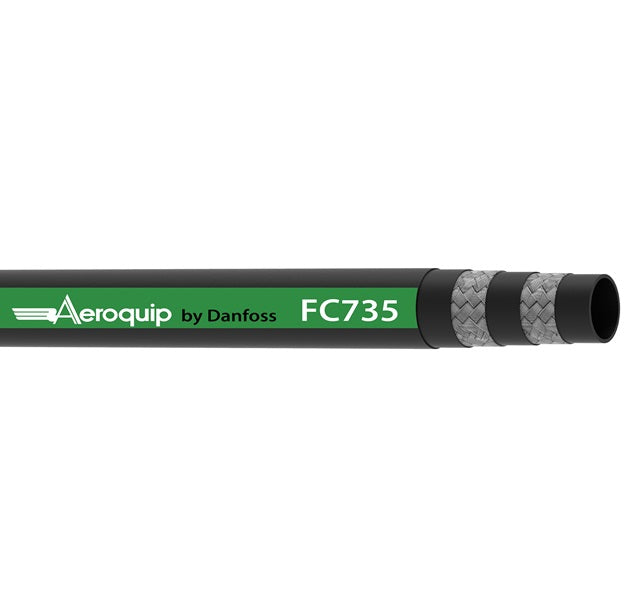

FC735-20 Aeroquip by Danfoss | BRUISER Ultra Abrasion Resistant Double Wire Braid Hydraulic Hose | SAE 100R16 | 1.25" ID

FC735-20 Aeroquip by Danfoss | BRUISER Ultra Abrasion Resistant Double Wire Braid Hydraulic Hose | SAE 100R16 | 1.25" ID

$45.81 - $45.81
$45.81
$45.81 - $45.81
$45.81

Aeroquip® by Danfoss
FC735 Series | BRUISER Ultra Abrasion Resistant Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC735-20 Danfoss
Brand: Aeroquip, MatchMate
Series: FC735 Series
Hose Color(s): Black
Dash Size: -20
Internal Diameter: 1.25in
Outer Diameter: 1.70in
Tubing Construction: Synthetic Rubber
Cover Construction: Intermediate Synthetic Rubber with Outer Bruiser
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, DNV, EN857, ISO 11237-1, SAE 100R16
Compatible with the following Series: 1AA MatchMate Series
Hose Properties:
Application: High abrasion applications.
Hydraulic system service with petroleum and water-based fluids.
For general industrial service.		 SAE Rating: Meets or exceeds: SAE 100R16 Type S, EN 857 2SC, ISO 18752, ISO 11237-1 Type 2SC performance
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Double Wire Braid Cover: Synthetic Rubber Intermediate Cover and BRUISER™ Outer Cover
Temperature Range: -40°F to +260°F
(-40°C to +126°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC735-04* 6 6,4mm 0.25" 14,1mm 0.55" 448 bar 5800* psi 1600,0 bar 23200* psi 50,8mm 2.00" 0,31 kg/m 0.21 lbs/ft
FC735-6 10 9,5mm 0.38" 17,4mm 0.69" 400 bar 5300 psi 1462,0 bar 21200 psi 63,5mm 2.50" 0,42 kg/m 0.28 lbs/ft
FC735-8 12 12,7mm 0.50" 20,8mm 0.82" 345 bar 4275 psi 1180,0 bar 17100 psi 88,9mm 3.50" 0,49 kg/m 0.33 lbs/ft
FC735-10 16 15,9mm 0.62" 24,8mm 0.98" 276 bar 4000 psi 1103,0 bar 16000 psi 101,6mm 4.00" 0,71 kg/m 0.48 lbs/ft
FC735-12 19 19,1mm 0.75" 28,4mm 1.12" 241 bar 3125 psi 860 bar 12500 psi 120,7mm 4.75" 0,83 kg/m 0.56 lbs/ft
FC735-16 25 25,4mm 1.00" 35,7mm 1.41" 207 bar 2550 psi 700,0 bar 10200 psi 152,4mm 6.00" 1,19 kg/m 0.80 lbs/ft
FC735-20 31 31,8mm 1.25" 43,3mm 1.70" 172 bar 2250 psi 620,0 bar 9000 psi 209,6mm 8.25" 1,52 kg/m 1.02 lbs/ft

* Meets SAE100R2 pressures.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
