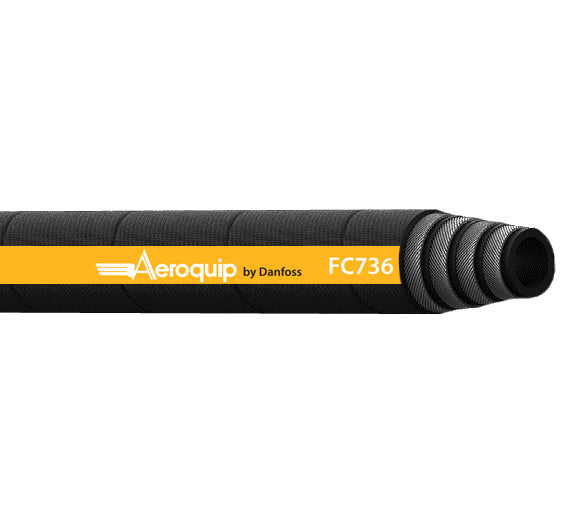

FC736-06 Aeroquip by Danfoss | BRUISER 4S Ultra Abrasion Resistant 4-Spiral Wire Hydraulic Hose | SAE 100R12 | 0.38" ID

Original price $22.69 - Original price $22.69
Original price
$22.69
$22.69 - $22.69
Current price $22.69

Aeroquip® by Danfoss
FC736 Series | BRUISER 4S Ultra Abrasion Resistant 4-Spiral Wire Hydraulic Hose

Recommended for critical applications in construction, forestry, and other off-highway vehicles.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC736-06 Danfoss
Brand: Aeroquip
Series: FC736 Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.38in
Outer Diameter: 0.79in
Tubing Construction: Synthetic Rubber
Cover Construction: Intermediate Synthetic Rubber with Outer Bruiser
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, DNV, EN856, EN856 Type R12, SAE 100R12
Hose Properties:
Application: High abrasion industrial and hydraulic system applications with petroleum and water-based fluids. SAE Rating: Meets or exceeds: SAE 100R12, ISO 18752, EN 856 Type R12 performance.
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: 4-Spiral Wire Cover: Synthetic rubber intermediate cover and BRUISER™ outer cover.
BRUISER™ outer cover offers unmatched abrasion, chemical and environmental protection.
Temperature Range: -40°F to +250°F
(-40°C to +121°C)

Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC736-06 10 9,5mm 0.38" 20,2mm 0.80" 380 bar 5500 psi 1520 bar 22000 psi 125mm 4.92" 0,71 kg/m 0.48 lbs/ft
FC736-08 12 12,7mm 0.50" 23,6mm 0.93" 345 bar 5000 psi 1380 bar 20000 psi 180mm 7.09" 0,83 kg/m 0.56 lbs/ft
FC736-10 16 15,9mm 0.62" 27,4mm 1.08" 345 bar 5000 psi 1380 bar 20000 psi 200mm 7.87" 0,98 kg/m 0.66 lbs/ft
FC736-12 19 19,0mm 0.75" 30,7mm 1.21" 280 bar 4050 psi 1120 bar 16200 psi 240mm 9.45" 1,32 kg/m 0.89 lbs/ft
FC736-16 25 25,4mm 1.00" 37,9mm 1.49" 280 bar 4050 psi 1120 bar 16200 psi 300mm 11.81" 1,75 kg/m 1.18 lbs/ft
FC736-20 31 31,8mm 1.25" 46,6mm 1.84" 210 bar 3050 psi 840 bar 12200 psi 420mm 16.54" 2,36 kg/m 1.59 lbs/ft
FC736-24 38 38,1mm 1.50" 53,9mm 2.12" 175 bar 2550 psi 700 bar 10200 psi 500mm 19.68" 3,00 kg/m 2.01 lbs/ft
FC736-32 51 50,8mm 2.00" 66,8mm 2.63" 175 bar 2550 psi 700 bar 10200 psi 640mm 25.2" 4,37 kg/m 2.94 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
