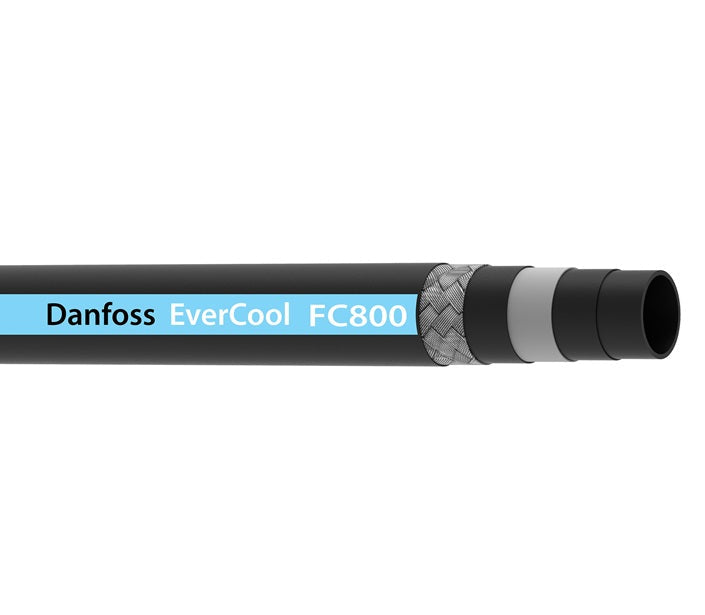

FC800-12 Aeroquip by Danfoss | EverCool Air Conditioning & Refrigeration Hose | SAE J2064 | 0.65" ID

FC800-12 Aeroquip by Danfoss | EverCool Air Conditioning & Refrigeration Hose | SAE J2064 | 0.65" ID

$27.36 - $27.36
$27.36
$27.36 - $27.36
$27.36

Aeroquip® by Danfoss
FC800 Series | EverCool | Air Conditioning & Refrigeration Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Specifications for Variant SKU: FC800-12 Danfoss
Brand: Aeroquip
Series: FC800 Series
Hose Color(s): Black
Internal Diameter: 0.65in
Outer Diameter: 1.071in
Tubing Construction: Chloroprene
Cover Construction: EPDM
Applicable Specs & Approvals: SAE J2064
Hose Properties:
Application: Metro, large bus and rail.
Overhead cranes and stationary equipment.		 SAE Rating: Meets: SAE J2064
Cover: EPDM Tube: Chloroprene (CR)
Barrier Layer:: Polyamide (PA) Reinforcement: 1 Wire Braid
Operating Parameters: -40°C to +125°C (-40°F to +257°F)
Permeation rate <1,0 kg/m2/year (for R134a at 80°C)
Moisture ingression <0.039 g/cm2/year according to SAE J2064, Class 1
Refrigerant use R134a, R407C, HF1234yf.
Benefits: FC800 EverCool exceeds the requirements of the SAE J2064.
FC800 has an excellent bend radius, virtually 1/2 of the radius of comparable large bore hoses.
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight Vacuum service
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft kPa in/Hg
FC800-12 12 16,4 mm 0.65" 27,2mm 1.07" 35 bar 500 psi 140 bar 2000 psi 70mm 3.0" 0,67 kg/m 0.45 lbs/ft 94,8 kPa 28 in/Hg
FC800-16 16 22,8mm 0.90" 31,5mm 1.24" 35 bar 500 psi 140 bar 2000 psi 80mm 3.5" 0,71 kg/m 0.48 lbs/ft 94,8 kPa 28 in/Hg
FC800-20 20 29,3mm 1.15" 38,6mm 1.52" 35 bar 500 psi 140 bar 2000 psi 100mm 4.0" 0,92 kg/m 0.62 lbs/ft 94,8 kPa 28 in/Hg
FC800-24 24 35,5mm 1.40" 45,6mm 1.80" 35 bar 500 psi 140 bar 2000 psi 160mm 6.5" 1,16 kg/m 0.78 lbs/ft 94,8 kPa 28 in/Hg

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
