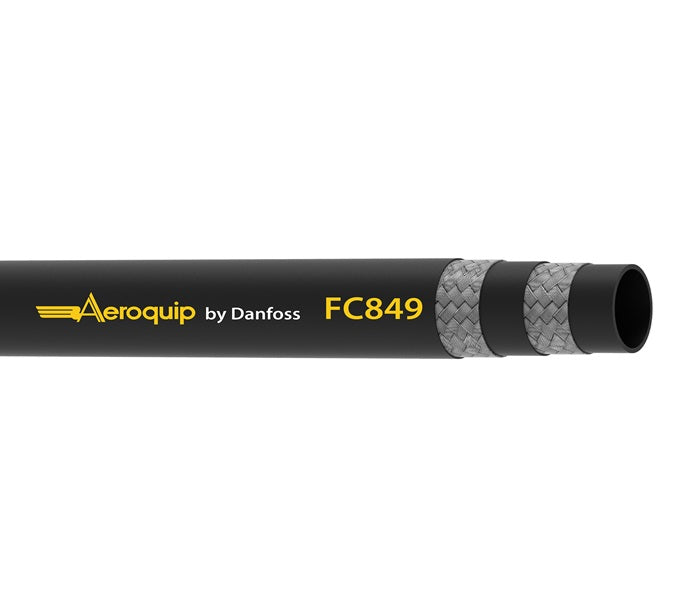

FC849-06 Aeroquip by Danfoss | 4000 PSI Constant Pressure Double-Wire Braid Hydraulic Hose | SAE 100R19 | 0.38" ID

FC849-06 Aeroquip by Danfoss | 4000 PSI Constant Pressure Double-Wire Braid Hydraulic Hose | SAE 100R19 | 0.38" ID

$9.21 - $9.21
$9.21
$9.21 - $9.21
$9.21

Aeroquip® by Danfoss
FC849 Series | 4000 PSI Constant Pressure Double-Wire Braid Hydraulic Hose

Recommended for use on construction, forestry, and other off-highway vehicles.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC849-06 Danfoss
Brand: Aeroquip, MatchMate
Series: FC849 Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.38in
Outer Diameter: 0.76in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, SAE 100R19, USCG
Compatible with the following Series: 1AA MatchMate Series
Hose Properties:
Application: Industrial and hydraulic system applications with petroleum and water-based fluids. SAE Rating: Meets or Exceeds: SAE 100R19
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Double-Wire Braid Cover: Synthetic Rubber
Temperature Range: -40°F to +212°F
(-40°C to +100°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC849-06 10 9,7mm 0.38" 19,3mm 0.76" 280,0 bar 4000 psi 1120,0 bar 16000 psi 63,5mm 2.50" 0,54 kg/m 0.36 lbs/ft
FC849-08 12 12,7mm 0.50" 22,6mm 0.89" 280,0 bar 4000 psi 1120,0 bar 16000 psi 88,9mm 3.50" 0,64 kg/m 0.43 lbs/ft
FC849-10 16 16,0mm 0.63" 25,7mm 1.01" 280,0 bar 4000 psi 1120,0 bar 16000 psi 101,6mm 4.00" 0,90 kg/m 0.60 lbs/ft
FC849-12 19 19,1mm 0.75" 30,0mm 1.18" 280,0 bar 4000 psi 1120,0 bar 16000 psi 120,7mm 4.75" 1,07 kg/m 0.72 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
