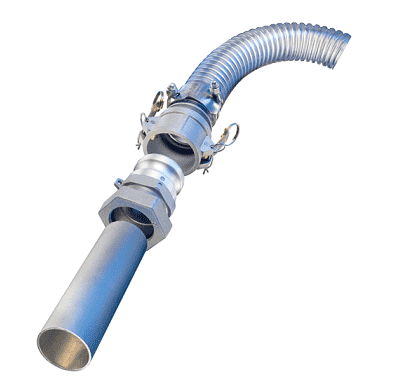

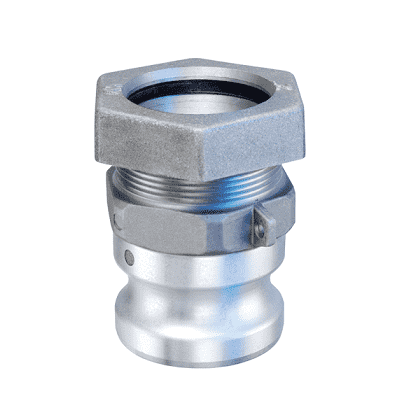

FCAL300 by Kuriyama | Quick-Acting Coupling | Part FC | 3" Male Adapter x 3" Compression | Aluminum
FCAL300 by Kuriyama | Quick-Acting Coupling | Part FC | 3" Male Adapter x 3" Compression | Aluminum

FCAL300 by Kuriyama | Quick-Acting Coupling | Part FC | 3" Male Adapter x 3" Compression | Aluminum

Save $13.78 Save $13.78
$48.24
$48.24 - $48.24
$48.24
$34.46
$34.46 - $34.46
$34.46

Kuriyama Couplings™ - Quick-Acting Couplings - Part FC - Male Adapter x Compression - Aluminum

Specifications for Variant SKU: FCAL300 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Male Cam & Groove, 3in Tube Compression
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Material Handling, Irrigation, Fracking.
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" Male Adapters supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy
  • Forged brass handles - aluminum items
  • Type 304 stainless steel handles - ALSH items
  • Zinc-plated carbon steel handle pins
  • Zinc-plated carbon steel pull rings
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Male Adapter Compression Weight (Lbs.)
FCAL150 1-1/2" 1-1/2" 0.52 lbs
FCAL200 2" 2" 0.72 lbs
FCAL250 2-1/2" 2-1/2" 1.32 lbs
FCAL300 3" 3" 1.46 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
