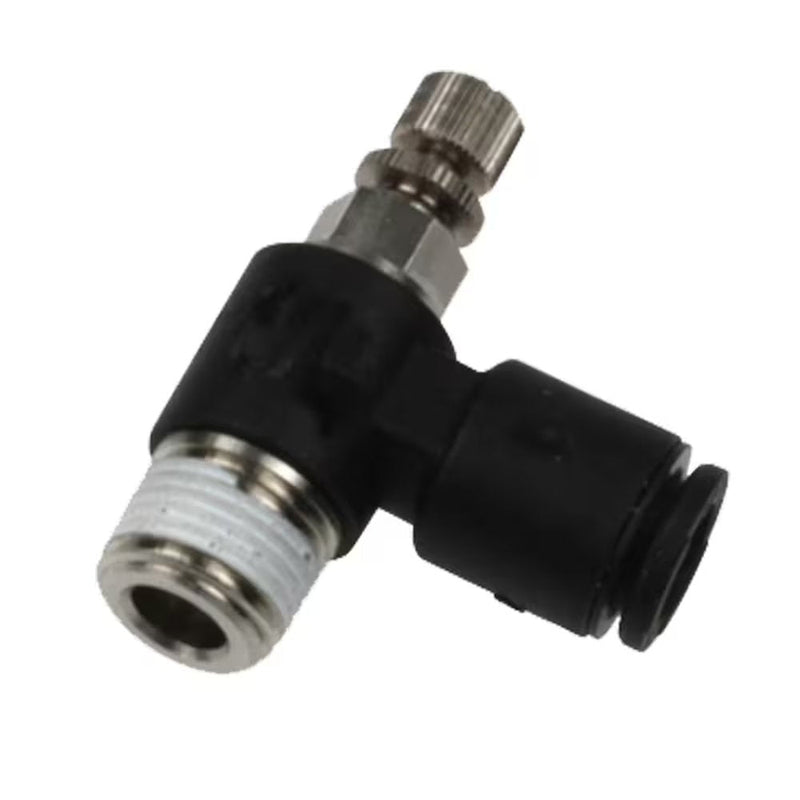

FCMI731-6M-4R by Parker | Miniature Flow Controls | 6 mm Push-to-Connect x 1/4" Male BSPT Thread | 8 mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

FCMI731-6M-4R by Parker | Miniature Flow Controls | 6mm Push-to-Connect x 1/4" Male BSPT Thread | 8mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $134.31 Save $134.31
$335.78
$335.78 - $335.78
$335.78
$201.47
$201.47 - $201.47
$201.47

by Parker Hannifin
Miniature Flow Controls:FCMI731 Miniature Meter In Flow Control - BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: FCMI731-6M-4R Parker | 10 |
Series: FCMI731 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Mini/Micro Size, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D seal
  • NPT
  • BSPT
  • BSPP
  • Metric threads
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPT Hex H Closed H Open L
FCMI731-4M-2R 4 mm 1/8" 7 mm 25.0 mm 27.5 mm 18.0 mm
FCMI731-6M-2R 6 mm 1/8" 7 mm 25.0 mm 27.5 mm 18.5 mm
FCMI731-6M-4R 6 mm 1/4" 8 mm 27.5 mm 30.0 mm 19.0 mm
FCMI731-8M-2R 8 mm 1/8" 13 mm 28.5 mm 33.0 mm 26.0 mm
FCMI731-8M-4R 8 mm 1/4" 16 mm 31.0 mm 35.0 mm 27.5 mm
