FD14-1004-12-12 Hansen® by Danfoss | Quick Disconnect Oil Drain Coupling | FD14 Series | Swivel Joint | 3/8" Body Size x 3/4-14 Dryseal NPTF | Aluminum

FD14-1004-12-12 Hansen® by Danfoss | Quick Disconnect Oil Drain Coupling | FD14 Series | Swivel Joint | 3/8" Body Size x 3/4-14 Dryseal NPTF | Aluminum

$162.07 - $162.07
$162.07
$162.07 - $162.07
$162.07

Hansen® by Danfoss

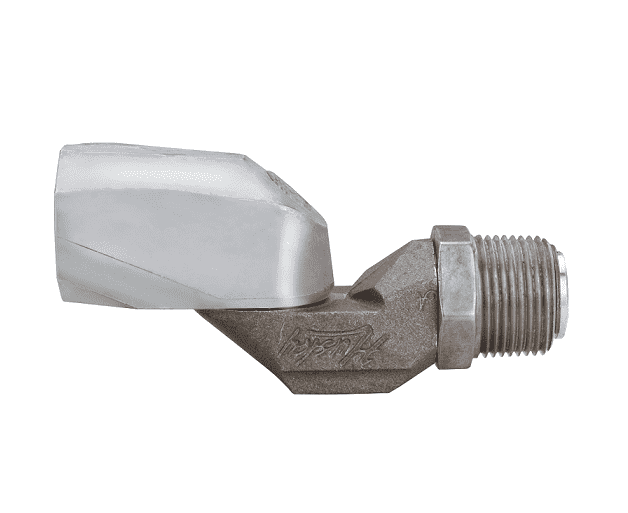

FLOCS Oil Drain Coupling Swivel Joint | FD14 Series

Danfoss' FD14 Drain Coupling is designed to serve as a drain port for use with Danfoss' FLOCS (Fast Lube Oil Change System) as well as providing a purging port for use during pre-fill operations.

The FD14 provides a leak free push to connect operation for improving speed and efficiency for oil evacuation systems.
Specifications for Variant SKU: FD14-1004-12-12 Danfoss
Brand: Hansen
Series: FD14 Series
Shape (Orientation): Straight
Material(s): Carbon Steel
Seal Material(s): Viton/FKM
Body Size Max. Operating Pressure Min. Burst Pressure
Connected		 Vacuum
Connected Only		 Rated Flow
3/8" 3.5 bar 50 psi 7.0 bar 200 psi 28 in/Hg 12 lpm 3 gpm
FD14 Series | Swivel Joint
Part Number Body Size Thread
FD14-1004-12-12 3/8" 3/4-14 Dryseal NPTF
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
