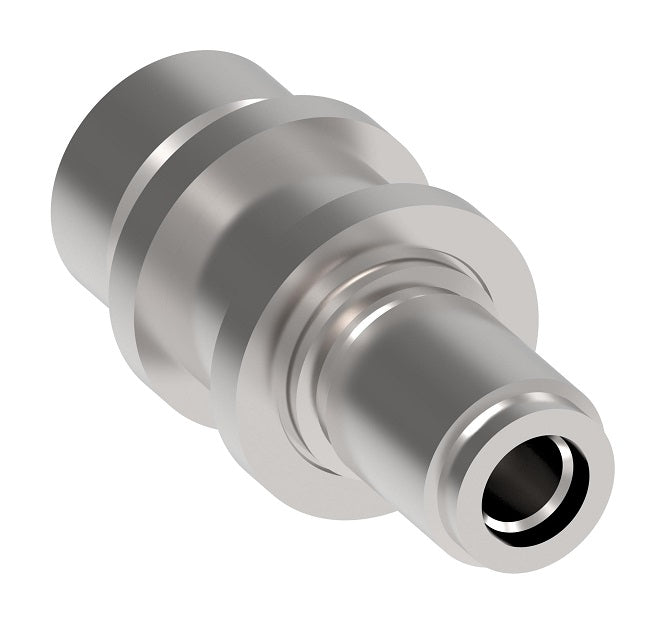

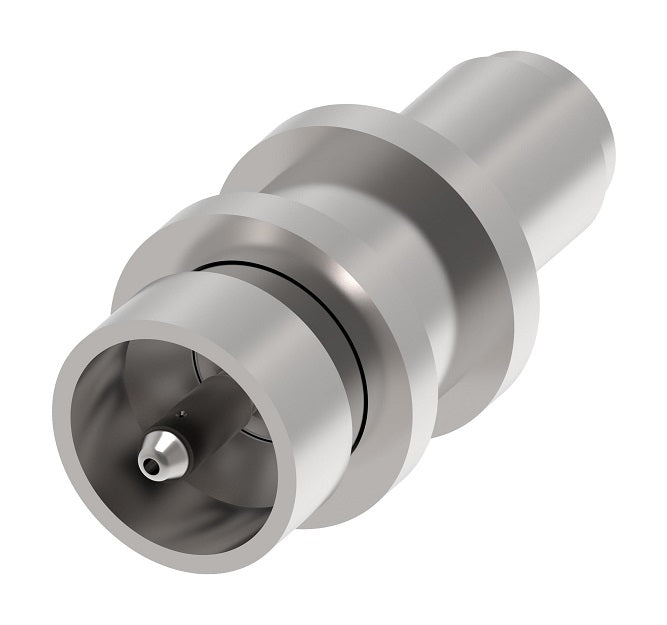

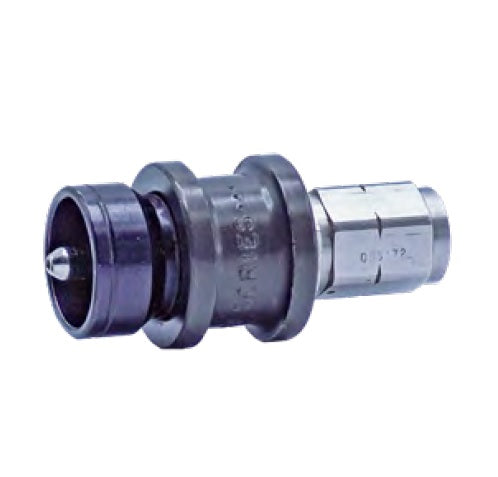

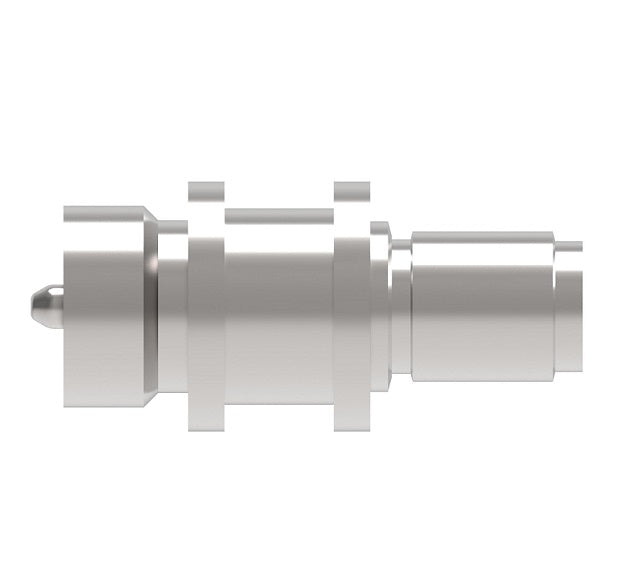

FD17-1003-04-04 Hansen® by Danfoss | Breathing Air Quick Disconnect Coupling | FD17 Series | 1/4" Female O-Ring Boss x 1/4" Body Size | Socket | Stainless Steel / Aluminum
FD17-1003-04-04 Hansen® by Danfoss | Breathing Air Quick Disconnect Coupling | FD17 Series | 1/4" Female O-Ring Boss x 1/4" Body Size | Socket | Stainless Steel / Aluminum
FD17-1003-04-04 Hansen® by Danfoss | Breathing Air Quick Disconnect Coupling | FD17 Series | 1/4" Female O-Ring Boss x 1/4" Body Size | Socket | Stainless Steel / Aluminum
FD17-1003-04-04 Hansen® by Danfoss | Breathing Air Quick Disconnect Coupling | FD17 Series | 1/4" Female O-Ring Boss x 1/4" Body Size | Socket | Stainless Steel / Aluminum
FD17-1003-04-04 Hansen® by Danfoss | Breathing Air Quick Disconnect Coupling | FD17 Series | 1/4" Female O-Ring Boss x 1/4" Body Size | Socket | Stainless Steel / Aluminum

FD17-1003-04-04 Hansen® by Danfoss | Breathing Air Quick Disconnect Coupling | FD17 Series | 1/4" Female O-Ring Boss x 1/4" Body Size | Socket | Stainless Steel / Aluminum

$339.16 - $339.16
$339.16
$339.16 - $339.16
$339.16

Hansen® by Danfoss
Quick Disconnect Coupling | FD17 Series

Quick Disconnect for Breathing Air Applications.

The Danfoss Hansen FD17 high pressure coupling can be connected by hand while under pressure up to 5,500 psi/380 bar. This quick disconnect coupling is most commonly used in SCBA transfilling and buddy-breathing applications and is commonly found on SCBA equipment certified to various NIOSH, NFPA and CBRN standards.
Specifications for Variant SKU: FD17-1003-04-04 Danfoss
Brand: Hansen
Shape (Orientation): Straight
Material(s): Stainless Steel, Aluminum
Features:
  • Connect and disconnect under pressure up to 5,500 psi/380 bar.
Applications & Markets:
  • SCBA transfilling and buddy-breathing applications.
Materials:
  • Standard Body Material: Stainless Steel, Aluminum.
Specifications:
  • Certified on SCBA equipment that meets NIOSH, NFPA and CBRN requirements.
  • Complies with NFPA 1981 and NFPA 2013.
Series Max. Operating Pressure Min. Burst Pressure Rated Flow* Rated Temperature
FD17 380 bar 5,500 psi 1140 bar 16,500 psi 125 lpm 4.4 scfm -40°F (-40°C)/+160°F (+71°C)

* Indicated value refer to a 1 bar/14.5 psi pressure drop.
Socket/Female (Figure 1)
Plug/Male (Figure 2)
FD17 Series
Part Number Coupling Type Body Size Port Size Thread Type Figure Dimensions
A B Hex
FD17-1003-04-04 Socket/Female 1/4" -4 7/16-20 Female O-Ring Boss 1 2.85"
(72.4mm)		 1.38"
(35.1mm)		 0.75"
(19.1mm)
FD17-1082-10-04 Plug/Male 1/4" -10 7/8-14 Male O-Ring Boss 2 1.93"
(49.0mm)		 1.43"
(36.3mm)		 1"
(25.4mm)
FD17 Series Dust Caps
Male Dust Cap
Female Dust Cap
Part Number Part Number
FD17-1064-04* FD17-1062-04

* Indicates patented product
